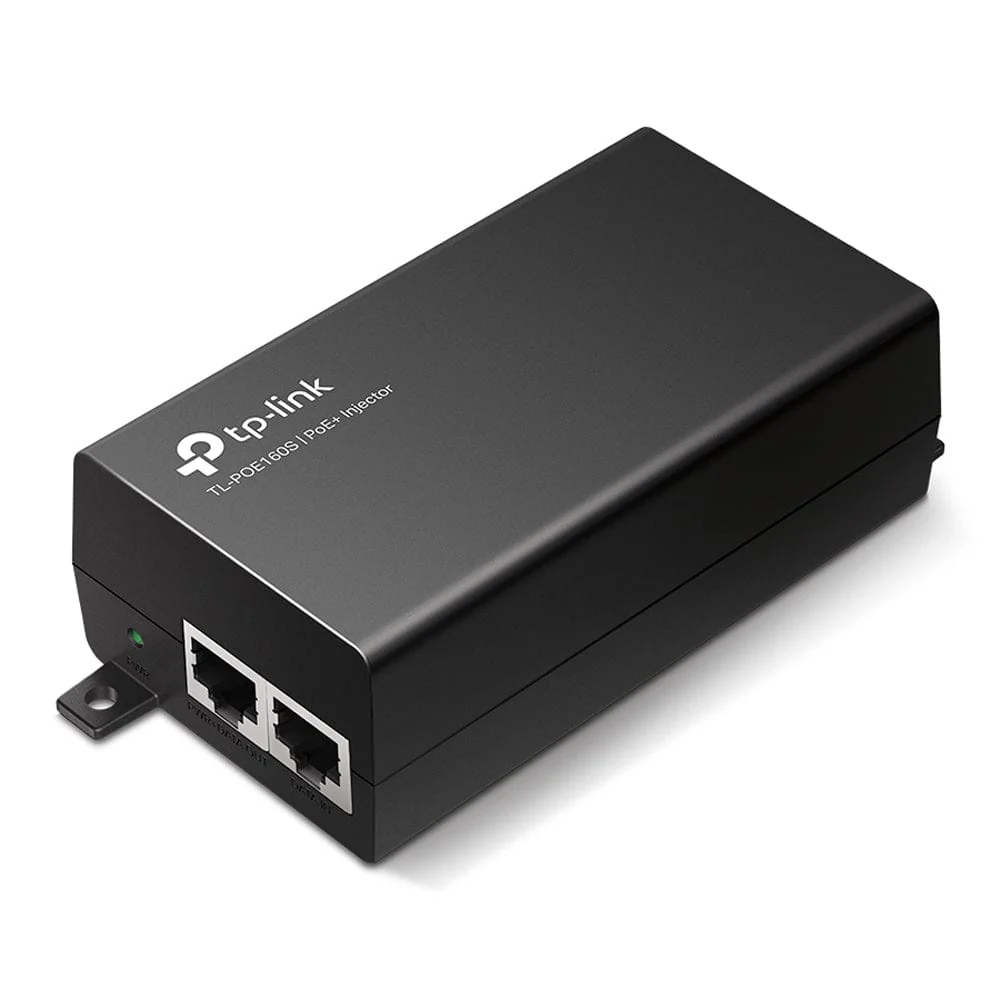

TP-Link TL-POE160S 30W PoE+ Injector
This PoE+ Injector from TP-Link fully complies with IEEE 802.3af/at standards supplying up to 30W, and can work with all IEEE 802.3af/at PoE compliant PoE equipment - such as many of the PoE HATs and add-ons we stock for the Raspberry Pi.

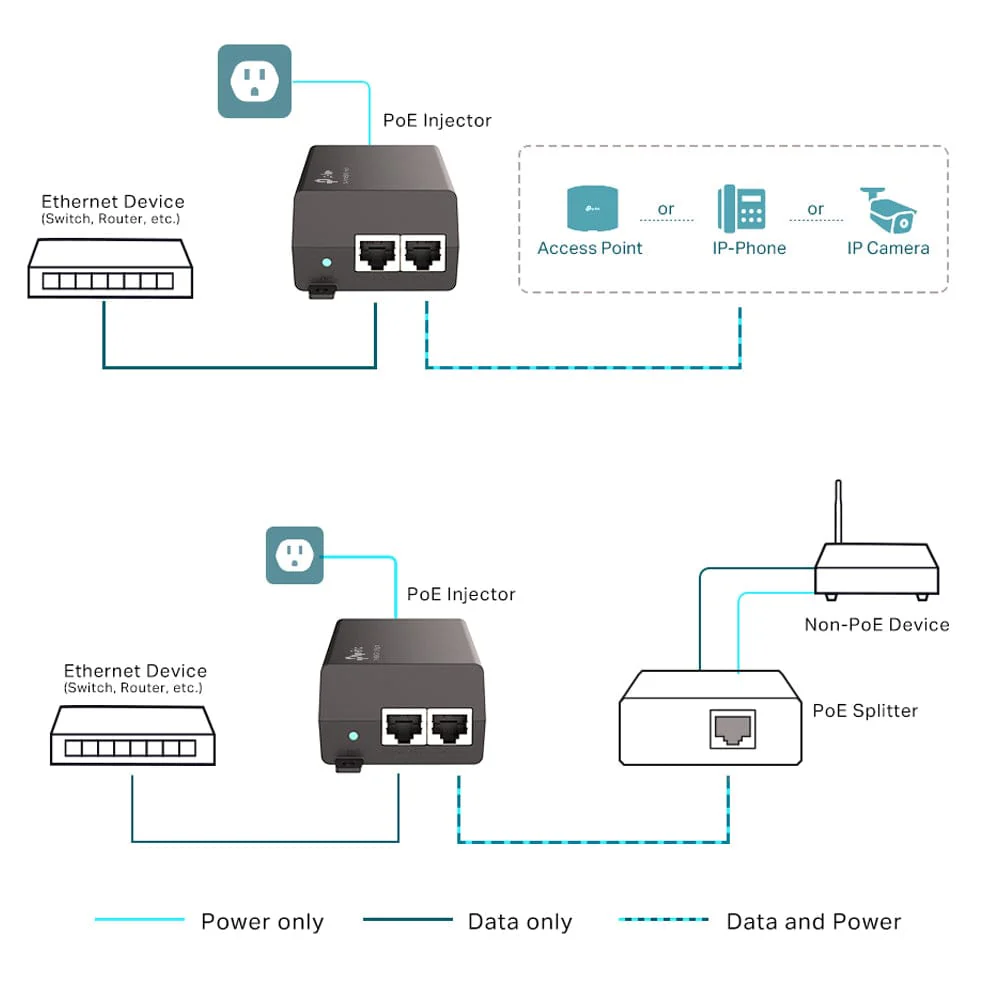

If your router or network switch doesn't offer PoE injected Ethernet lines, this injector will allow you to 'inject' any Ethernet cable to provide both power and a network connection - popular for Raspberry Pi deployment, IP PoE cameras and more.
Comes with a UK 3-pin plug, RJ45 cable and mounting kit.
Features
- 2x Gigabit ports
- One input port for data
- One output port for data+power
- Complies with IEEE802.3af/at standards, supplies up to 30 W
- Reduces infrastructure costs by transmitting data and power simultaneously via an Ethernet cable
- Automatically determines and supplies the exact power to meet the device's need

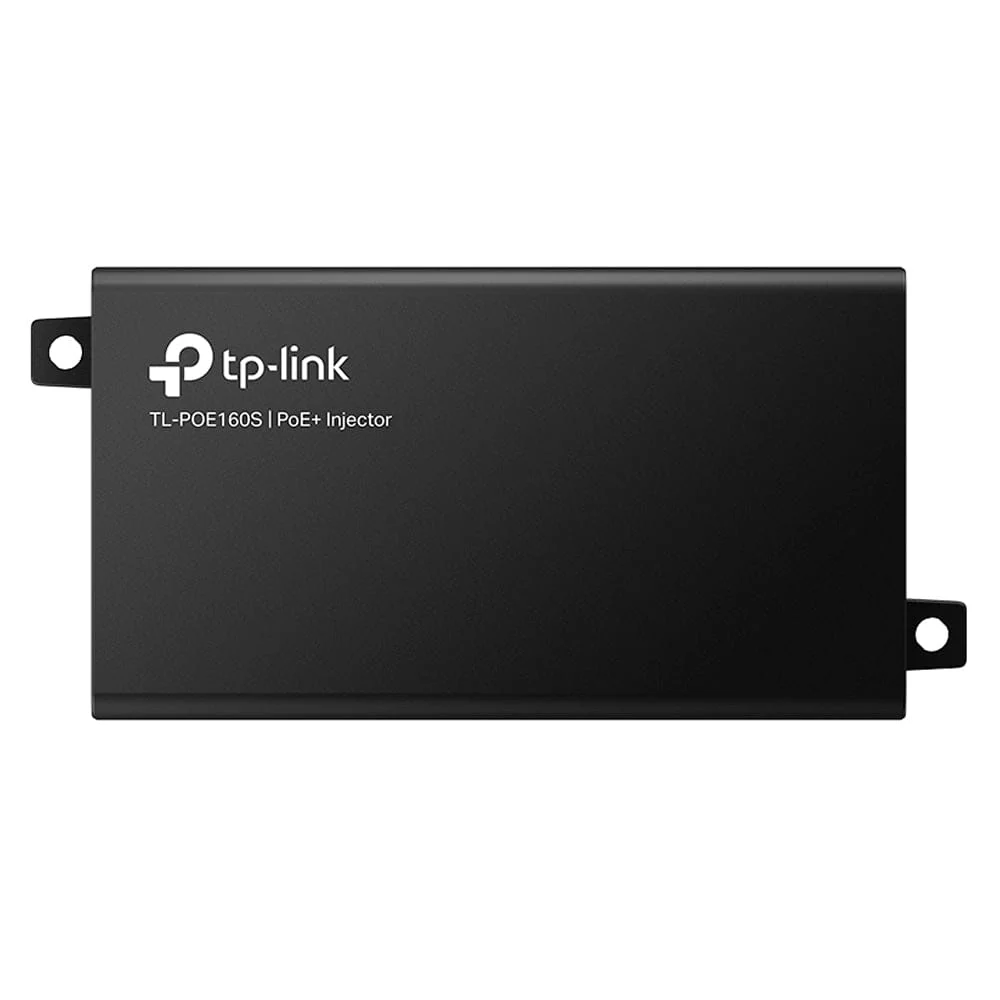

- Wall-mounting and desktop design accommodates most installation scenarios
- Plug & Play installation, requires no configuration
- Integrated power supply
Specifications
| Standards and protocols | IEEE802.3i, IEEE802.3u, IEEE802.3ab, IEEE802.3af, IEEE802.3at |
| Network media | 10BASE-T: UTP category 3, 4, 5 cable (maximum 100m) EIA/TIA-568 100Ω STP (maximum 100 m) 100BASE-TX: UTP category 5, 5e cable (maximum 100m) EIA/TIA-568 100Ω STP (maximum 100 m) 1000BASE-T: UTP category 5, 5e, 6 cable (maximum 100m) |

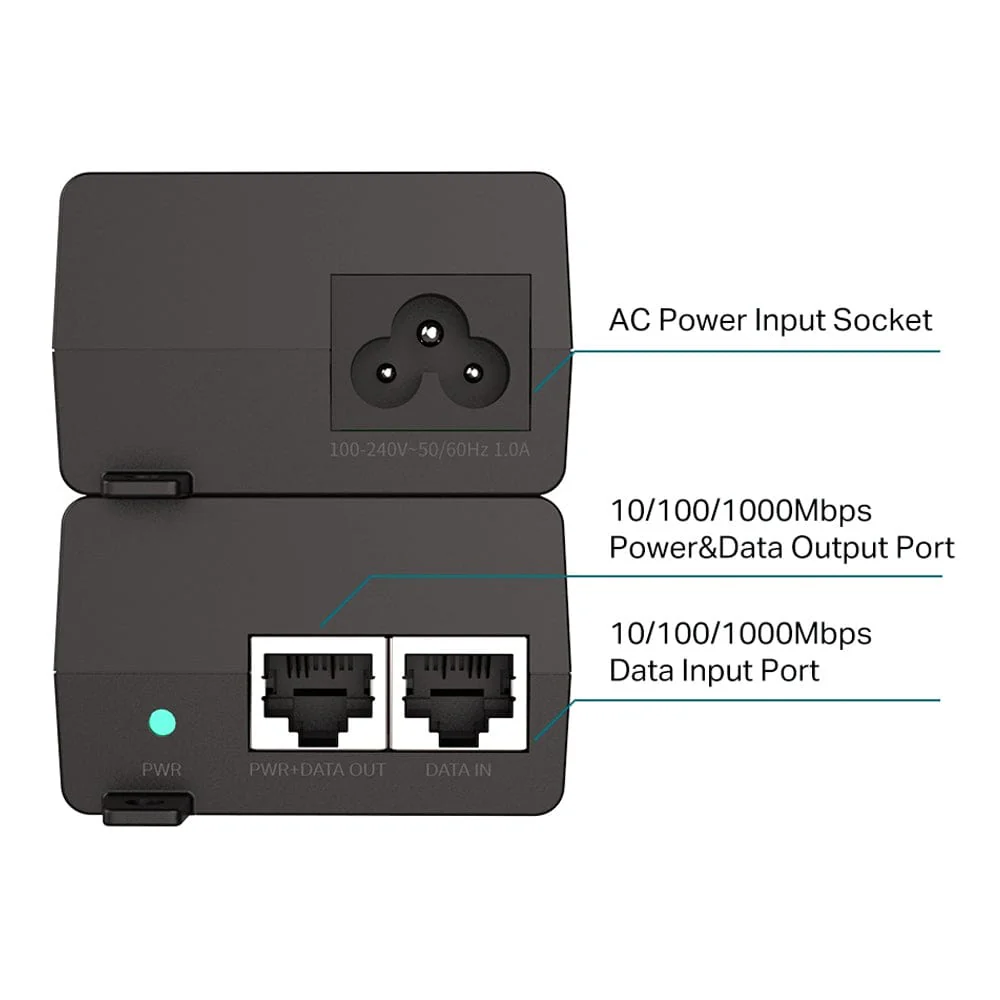

| Ports | 1 × 10/100/1000 Mbps RJ45 data-in port 1 × 10/100/1000 Mbps RJ45 power+data-out port 1 × AC power port |
| Power consumption | Input: 100–240 V, 50/60 Hz Output: Auto-determine necessary power requirements (max. 30W) |
| Basic function | Auto-sensing algorithm provides power with 802.3af/at PD Auto-determines necessary power requirements Wall-mounting and desktop installation supported Plug-and-play |
| LED indicator | ON: Supplying power normally OFF: No power supply |
| Dimensions (W × D × H) | 4.9 × 2.3 × 1.4 in (125 × 59 × 37 mm) |
| Certification | FCC, CE, RoHS |
| Environment | Operating temperature: 0°C to 40°C (32°F to 104°F) Storage temperature: -40°C to 70°C (-40°F to 158°F) Operating humidity: 10% to 90% RH non-condensing Storage humidity: 5% to 90% RH non-condensing |
Resources
Package Contents
- 1x PoE+ Injector TL-POE160S
- 1x Installation Guide
- 1x Power Cord
- 1x RJ45 Cable
- 1x Wall Mounting Kits
