BC02 Outdoor Bluetooth Location Beacon for SenseCAP T1000 Tracker
This Bluetooth location beacon enables low-power indoor and outdoor positioning when used with the SenseCAP T1000 Tracker, delivering 2–3 m accuracy for asset tracking, navigation and location-based applications.
This rugged outdoor Bluetooth location beacon from Seeed is designed for location-based services, navigation and asset tracking, and is especially suited for use with the SenseCAP T1000 Tracker. It supports both indoor and outdoor positioning while maintaining low power consumption.
While GPS works well for outdoor positioning, Bluetooth beacons offer a low-power alternative that enables accurate location tracking indoors and outdoors. When combined with the SenseCAP T1000, a compact LoRaWAN® tracker that supports GNSS, Wi-Fi and Bluetooth, it’s possible to build a flexible and reliable indoor/outdoor positioning system.
By deploying Bluetooth beacons across the target area, the tracker can receive beacon signals and determine location with meter-level accuracy (approximately 2–3 metres). This setup supports applications such as asset tracking, route planning, and reverse car search, and can be integrated into mobile apps or mini-programs for real-time location services.
T1000 Tracker not included.
Lithium Battery Shipping: Due to courier restrictions, this product can only be shipped within the United Kingdom. With this item in your cart, your shipping options will be limited and may cost more than our usual rates. Why?
Features
- Bluetooth® LE 5.0
- Long battery life: More than 7 years (In default configuration).
- Rugged and Durable: IP68 waterproof and IK08 impact-resistant for harsh conditions
- Long-distance transmission: Up to 75 meters in open areas.
Specifications
| Material | ABS+PC |
| Chip | nRF52 series |
| IP rate | IP68 |
| IK Rate | IK08 |

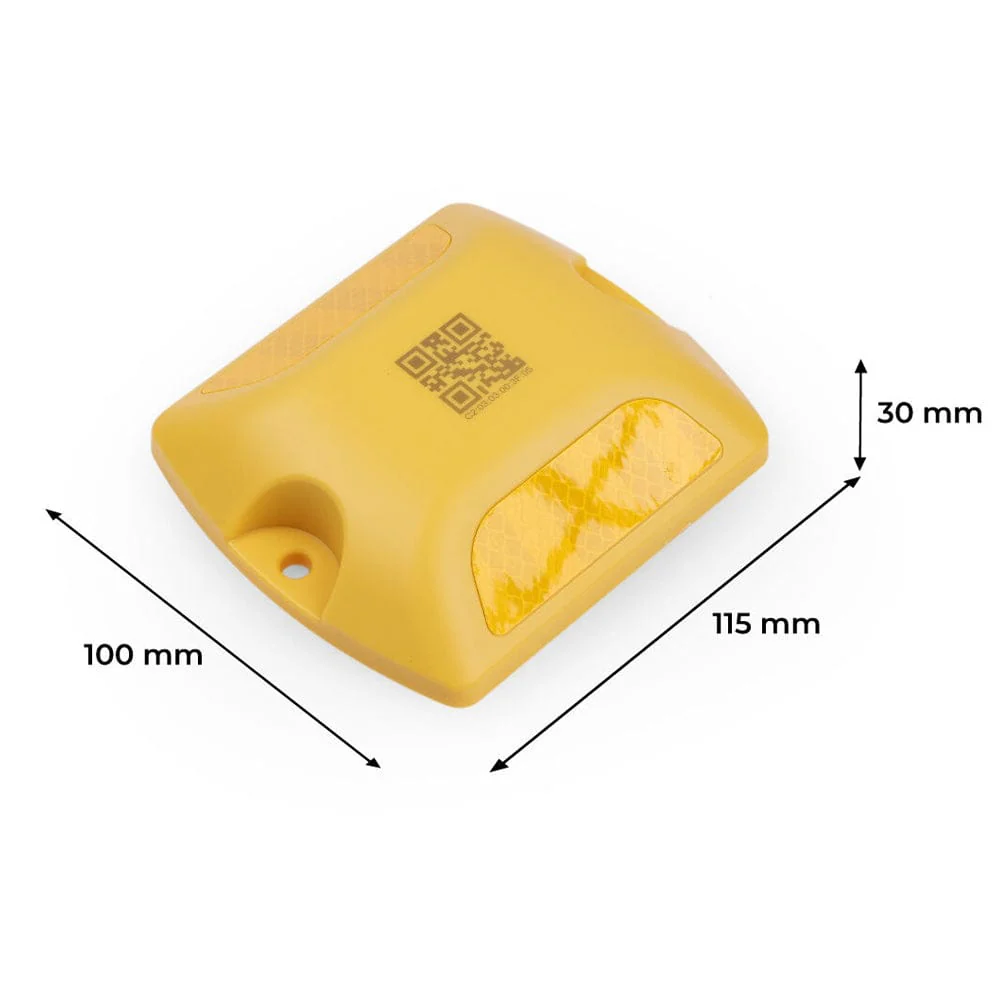

| Dimension(LWH) | 115×100×29mm |
| Weight | 169.1g (including battery) |
| Battery | Lithium-ion battery, 4000mAh |
| Battery life | More than 7 years (In default configuration). |
| Working temperature | 40~85°C |
| Working Humidity | 0~95%RH, no condensation |
| Bluetooth Version | BLE 5.0 |
| Bluetooth Protocol | iBeacon |
| Broadcasting Power | -40~+4dBm |
| Broadcasting Interval | 100ms~5s |
| Broadcasting Distance | Up to 75 meters in open areas |
| Supplier Code | 113991456 |
Resources
Package Contents
- 1x BC02 Outdoor Bluetooth Location Beacon
T1000 Tracker not included.
