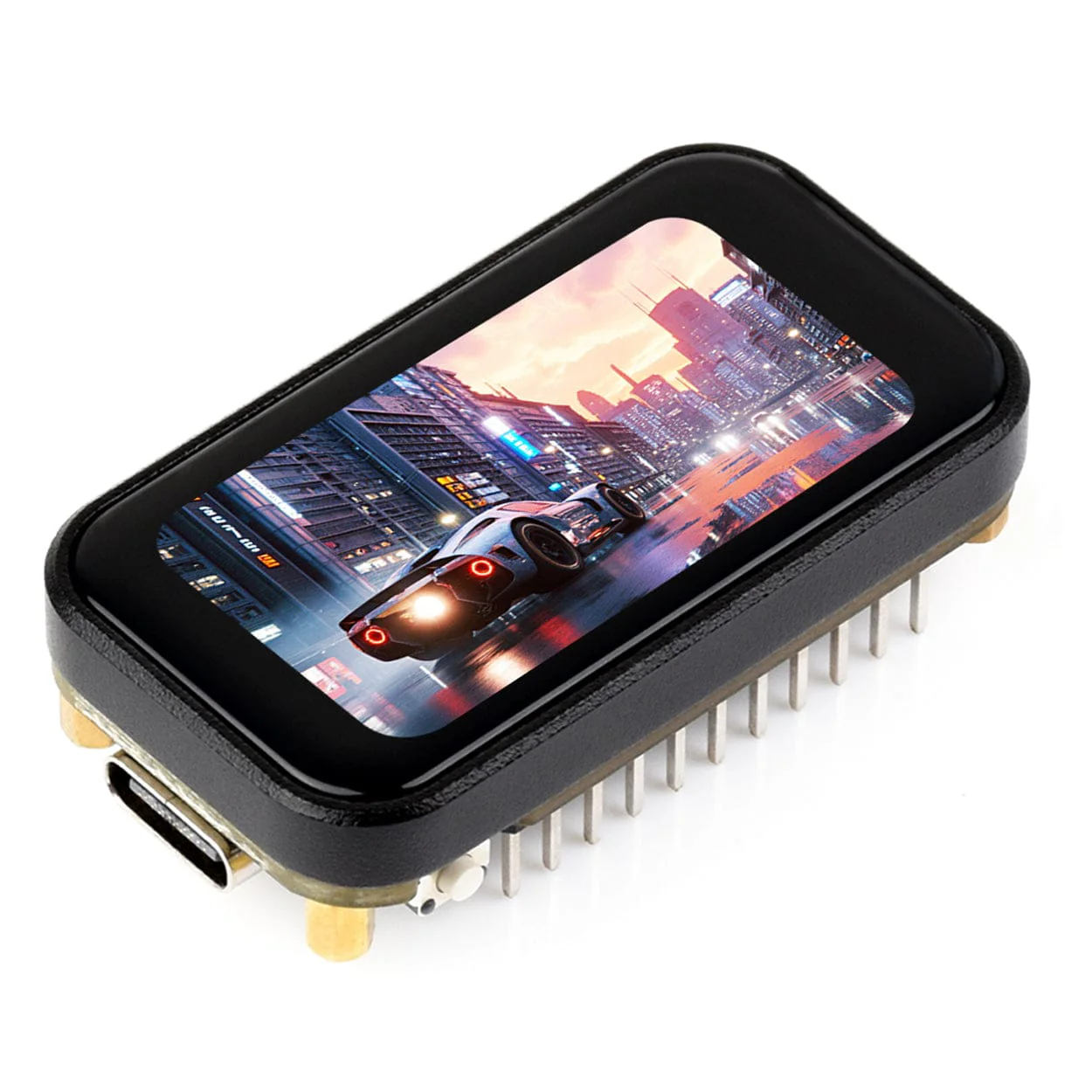

ESP32-C6 1.47" Touch Display Dev Board with IMU and SD Slot

Packing the powerful ESP32-C6 microcontroller, this compact capacitive touch display USB-C dev board from Waveshare offers a range of useful features in a tidy package.

The microcontroller chip is a ESP32-C6FH8 equipped with a 32-bit RISC-V processor and a low-power 32-bit RISC-V processor, with this board specifically offering 2.4 GHz Wi-Fi 6 (802.11ax) and Bluetooth® 5 (LE) via an onboard ceramic antenna, along with 8MB QSPI built-in Flash.

The display is a 1.47" IPS capacitive touchscreen panel with a 172x320 resolution, offering 262k colours. It has an I2C touch interface, reducing the number of IO pins used for touch inputs.

You'll also find a 6-axis IMU on board, along with a MicroSD slot, RESET and BOOT buttons, and USB-C for power and programming.

There are two versions of this board - one with the headers loose in the package, and another with them pre-soldered to the board. Please select an option before adding to your cart.

---

Secret features? Whilst not documented by Waveshare, there is an ETA6098 Li-Ion battery charger chip onboard. We think this is for use with the VBAT pin (for wiring a LiPo battery directly and charging via USB-C), however we have asked Waveshare to clarify.

---

Features

• Microcontroller: ESP32-C6FH8 with 32-bit RISC-V processor (up to 160 MHz) and low‑power 32-bit RISC-V processor (up to 20 MHz)
• Wireless connectivity: 2.4 GHz Wi‑Fi 6 (802.11ax/b/g/n) and Bluetooth 5 (LE) with onboard ceramic antenna
• Memory: 320 KB ROM, 512 KB HP SRAM, 16 KB LP SRAM, and 8 MB QSPI Flash
• Display: 1.47" IPS capacitive touchscreen, 172×320 resolution, 262k colours, I2C touch interface
• Storage: MicroSD card slot for external file and picture storage
• Sensors: Onboard 6‑axis IMU
• USB: USB‑C for power, programming, and full‑speed USB support
• Buttons: RESET and BOOT buttons
• Power features: Flexible clock control and multiple power modes for low‑power operation
• Development suitability: Supports smooth GUI frameworks such as LVGL for rapid HMI development

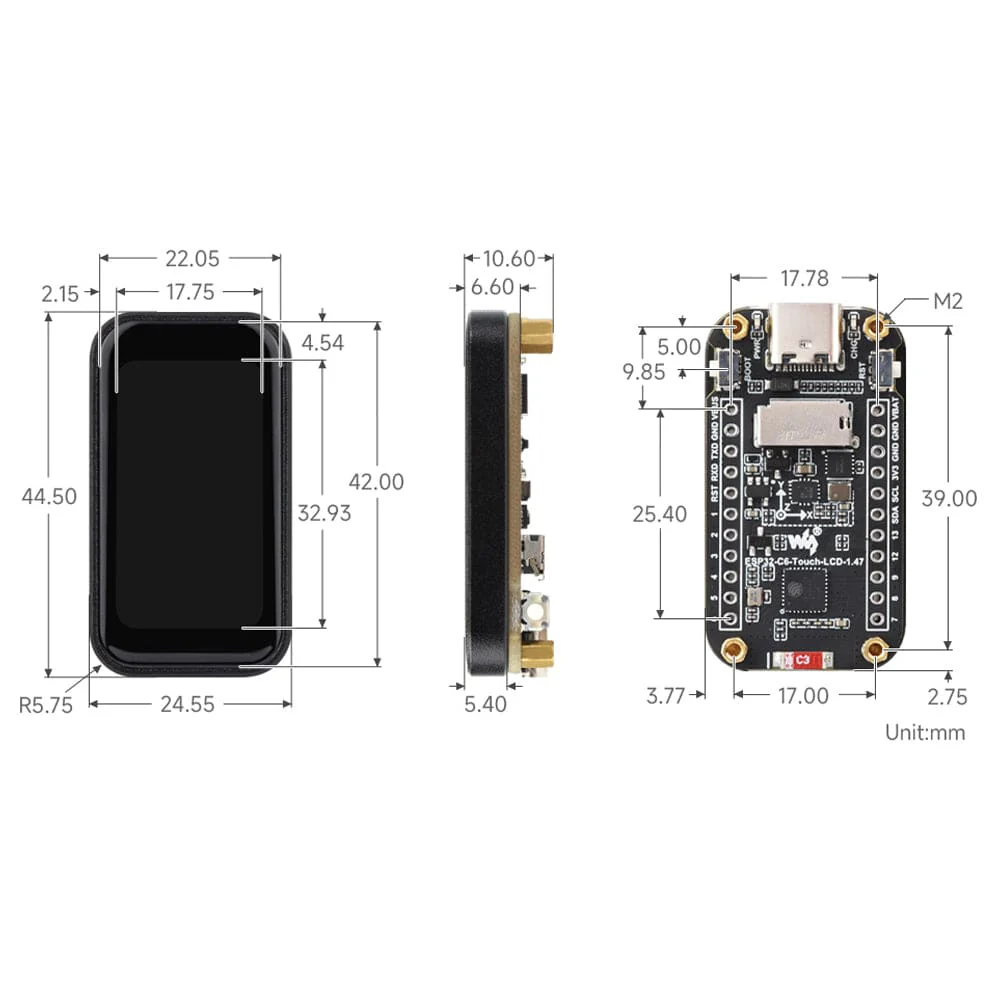

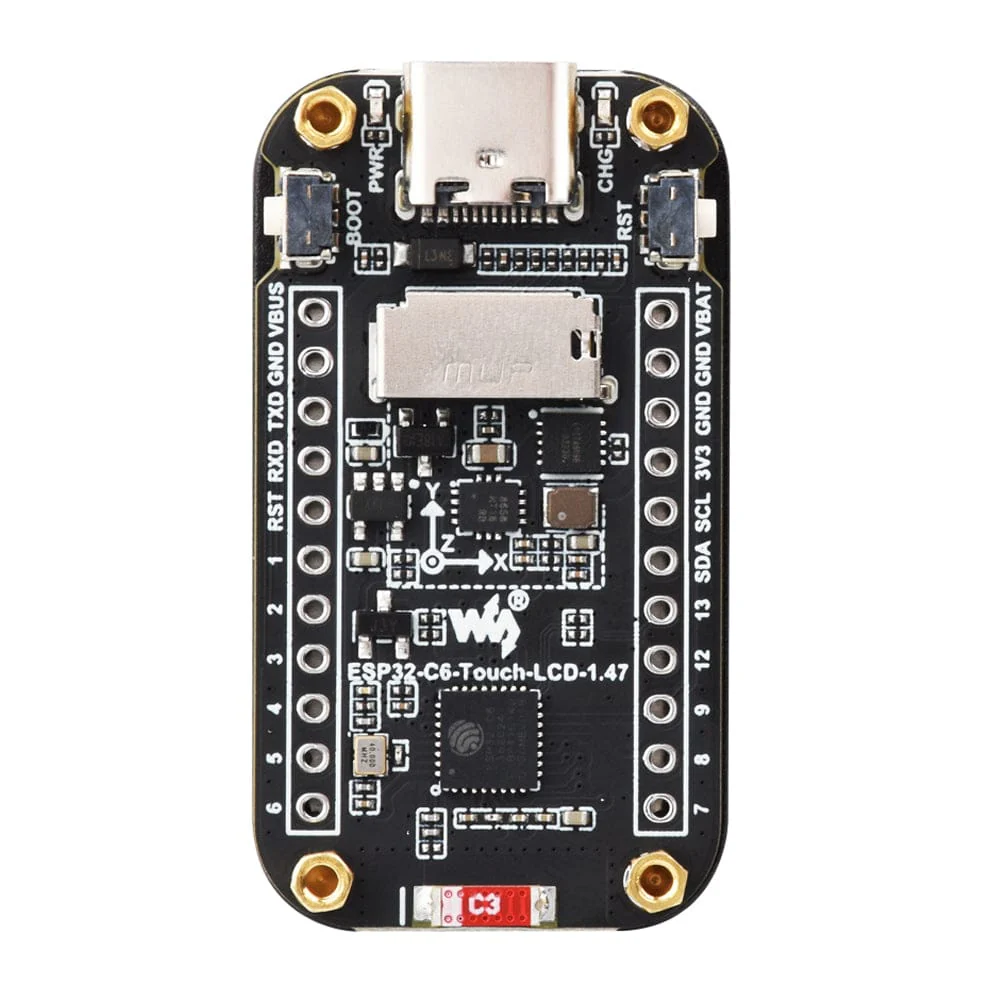

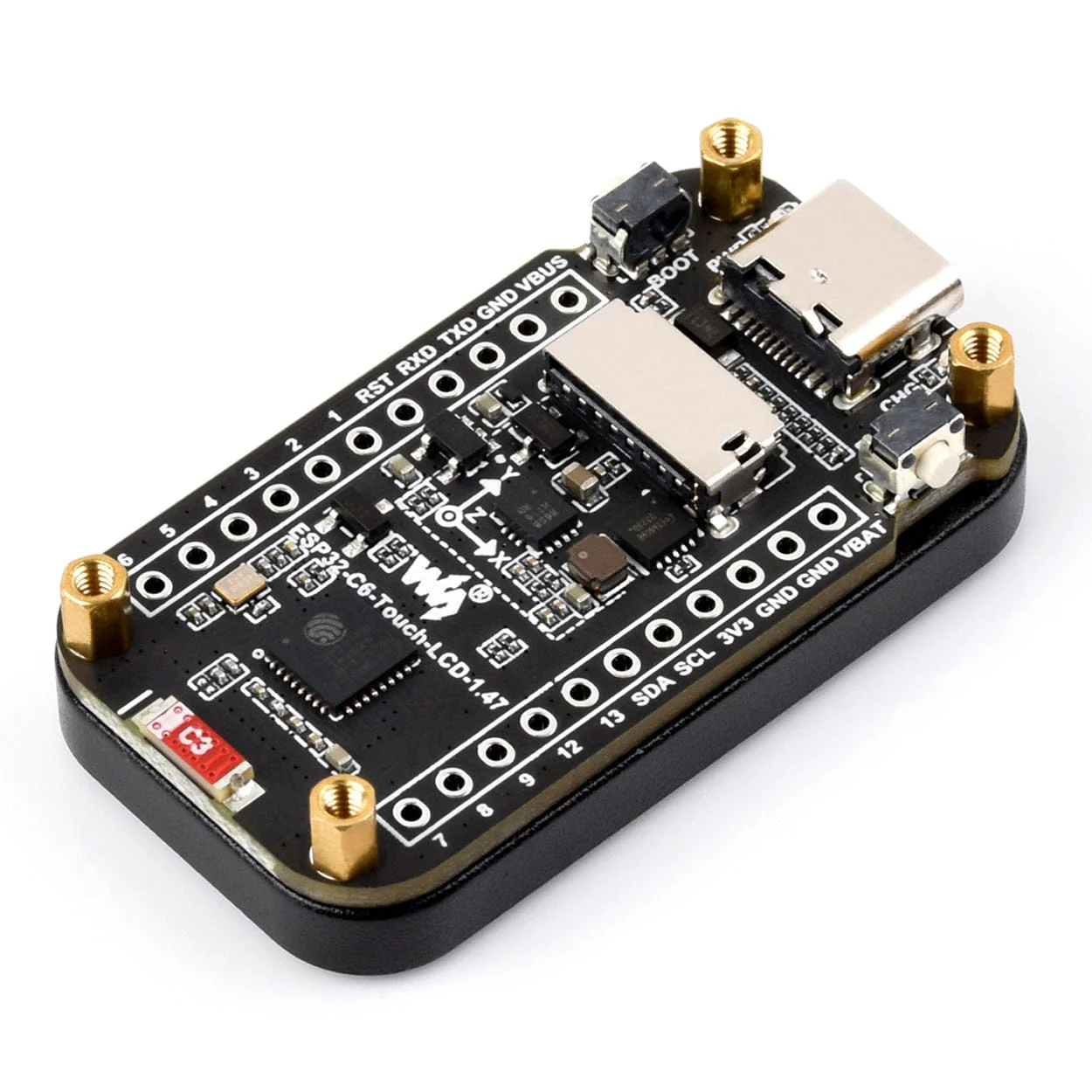

What's Onboard?

1. ESP32-C6FH8
2. Onboard ceramic antenna
3. ME6217C33M5G
   • Low dropout regulator, 800mA output (Max.)
4. QMI8658
   • 6-Axis IMU
5. ETA6098
6. TF card slot
7. RESET button
8. BOOT button
9. Type-C interface

Display Specifications

Display Size	1.47"
Resolution	172 × 320 pixels
Display Driver	JD9853
Touch Driver	AXS5106L
Display Interface	4‑wire SPI
Touch Interface	I2C
Display Panel	IPS
Touch Type	Capacitive

Resources

• Product Wiki

Pinout

Package Contents

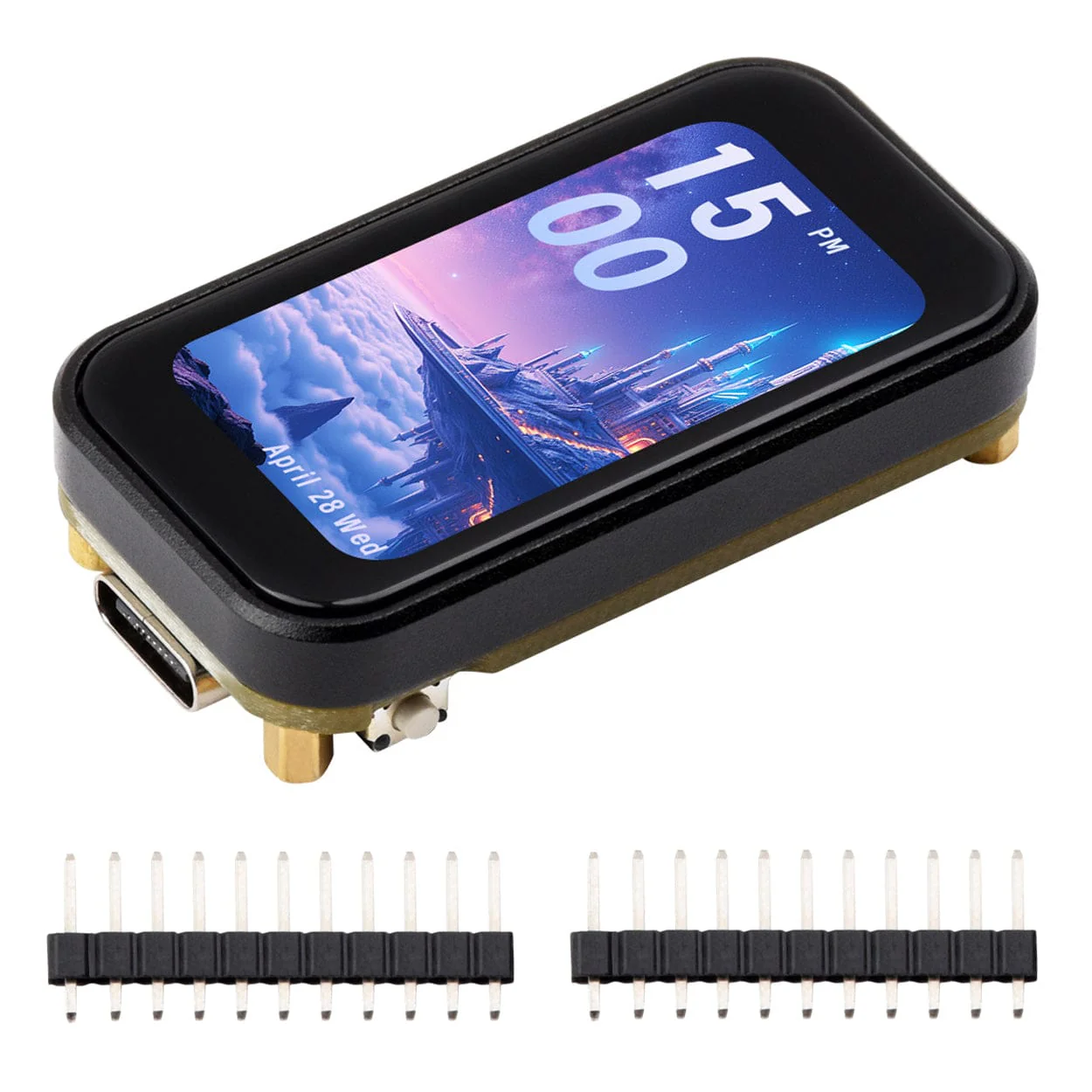

• 1x ESP32-C6 1.47" Touch Display Dev Board with IMU and SD slot
• 2x Headers (loose or pre-soldered - select an option before adding to your cart)
