PoE Module for StamPLC (W5500)

The M5Stack StamPLC PoE adds wired Ethernet and PoE to the StamPLC host using a W5500 controller with TCP/IP stack, 8 hardware sockets, 10/100M MAC+PHY, and TCP/UDP support. It connects via RJ45 and communicates over SPI for stable real-time control.

---

The M5Stack StamPLC PoE is an Ethernet control module designed for the StamPLC host, adding reliable wired networking with PoE (Power over Ethernet) support. This allows both data transmission and power delivery through a single Ethernet cable, helping simplify installation and reduce extra wiring.

The module integrates a W5500 embedded Ethernet controller with a built-in TCP/IP protocol stack, providing 8 independent hardware sockets along with a 10/100M Ethernet data link layer (MAC) and physical layer (PHY). It supports mainstream network communication methods, including UDP and TCP.

Network connection is handled via an RJ45 Ethernet interface, while communication with the StamPLC host is done over SPI. Designed for stable, real-time wired networking, it’s well suited to demanding applications such as industrial automation production lines, centralised building control systems, energy and power distribution monitoring, and data centre and communication equipment management.

Features

• W5500 embedded Ethernet controller
• SPI protocol control
• Supports PoE (active Ethernet) power supply, enabling data and power over a single Ethernet cable
• Supports Ethernet Wake-on-LAN functionality via UDP
• Integrated TCP/IP protocol stack, supporting TCP / UDP / ICMP / IPv4 / ARP / IGMP / PPPoE protocols
• Supports up to 8 independent hardware sockets for concurrent communication
• Integrated 10/100M Ethernet MAC and PHY, supporting full-duplex / half-duplex operation modes
• Supports automatic network speed negotiation

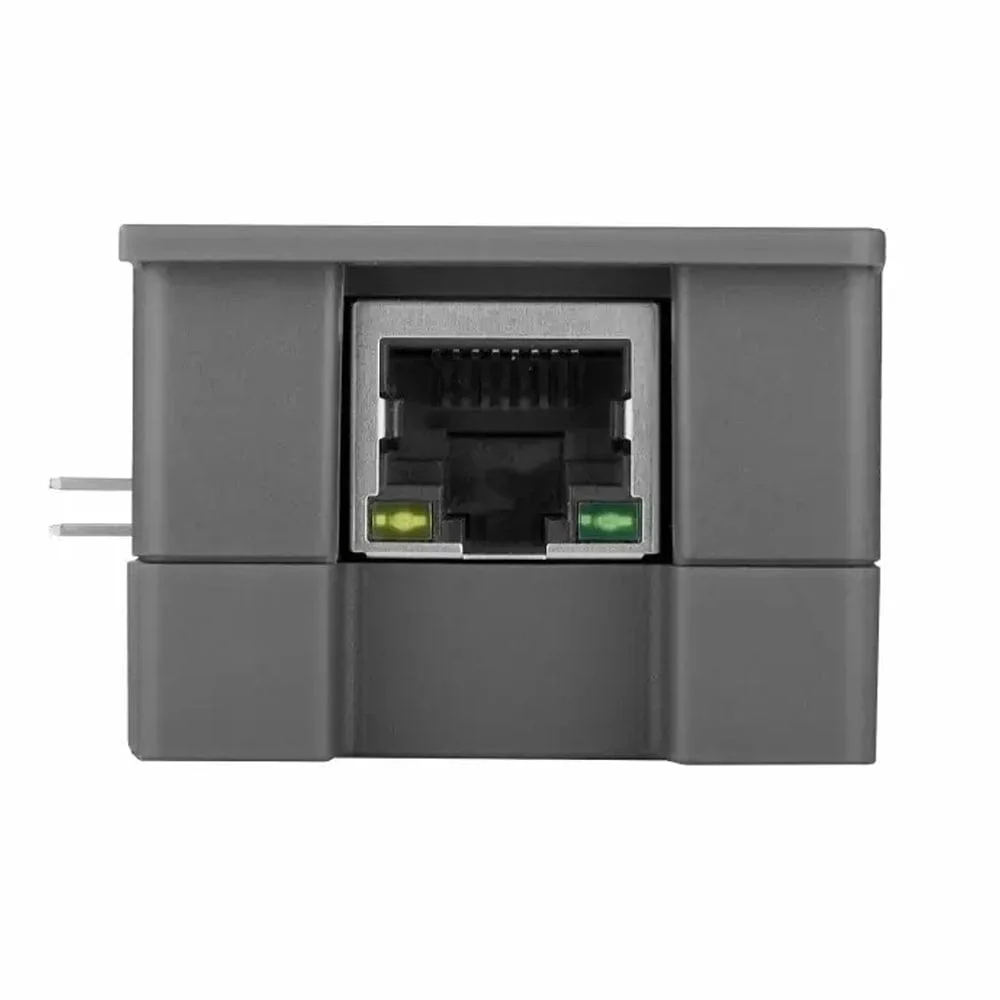

• Onboard RJ45 Ethernet interface

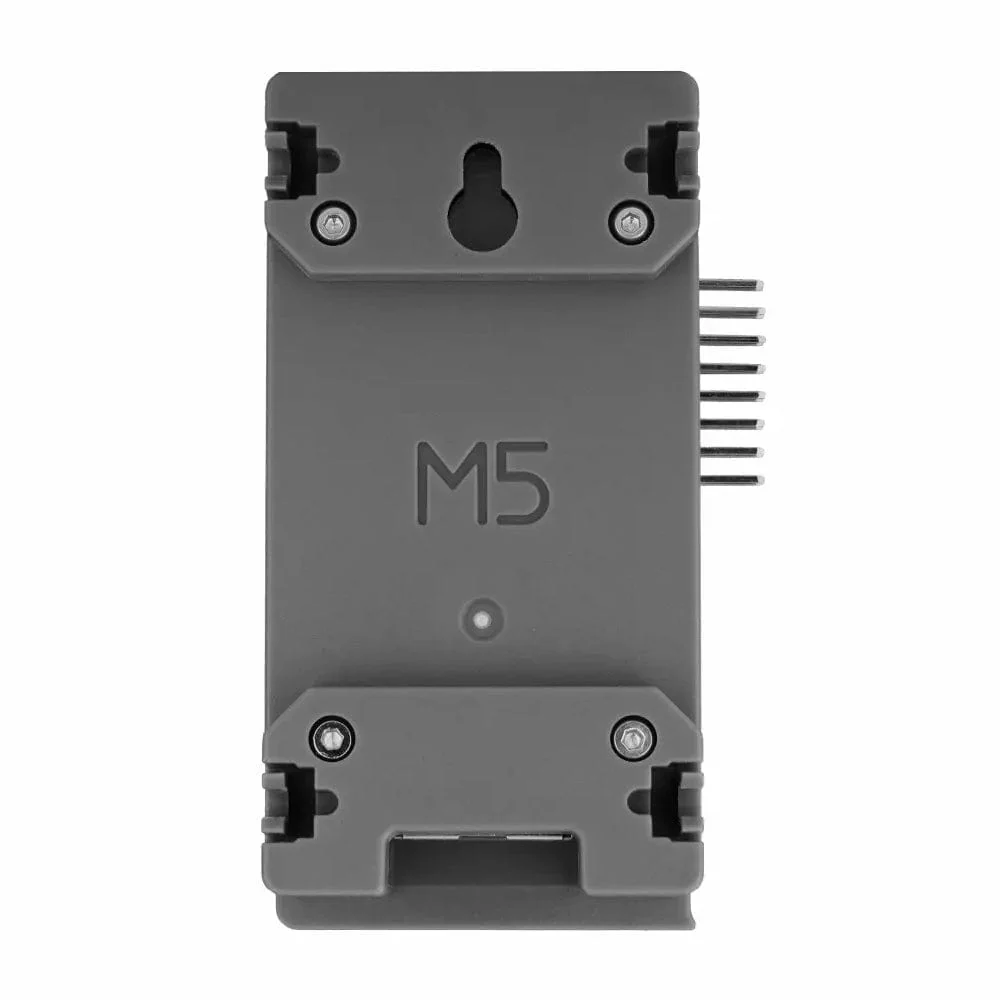

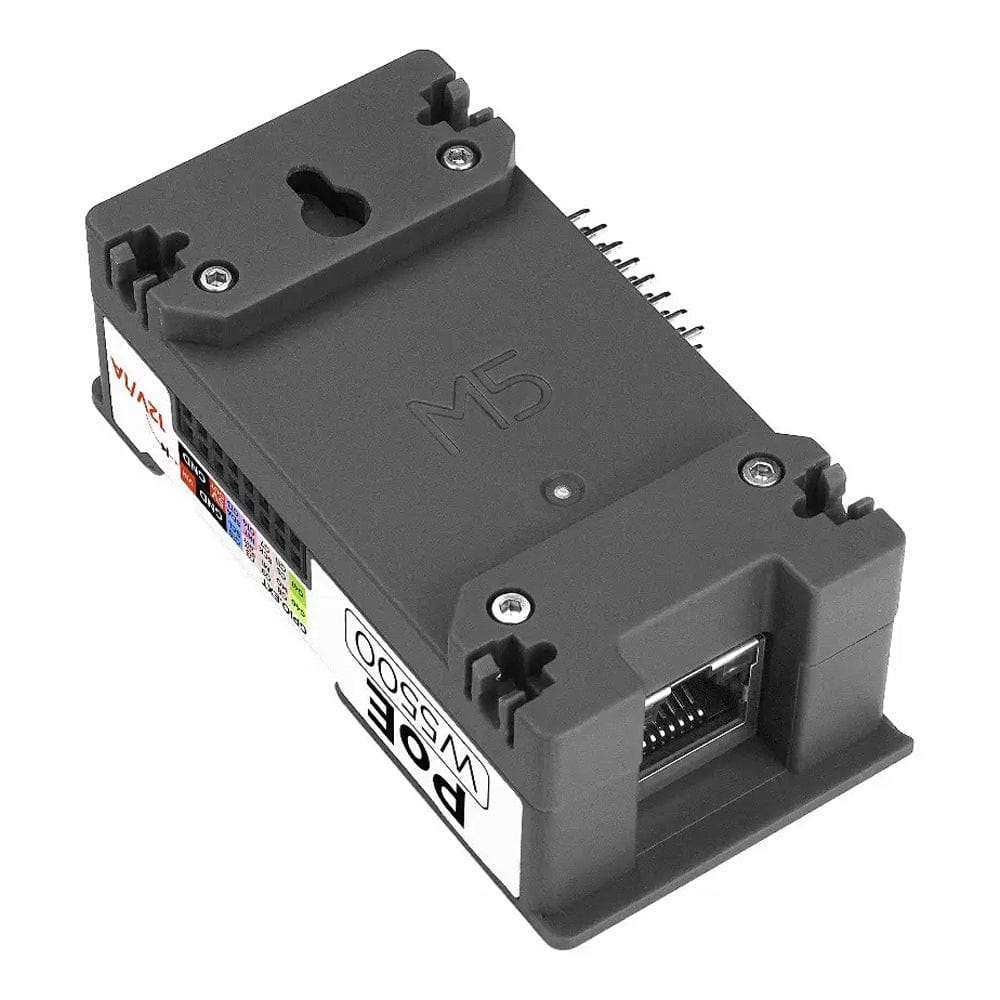

• DIN rail mounting / mounting holes
• Development Platform
  • Arduino
  • UiFlow2

Specifications

Communication Method	SPI communication
Ethernet Controller	W5500
Ethernet Speed	10/100M adaptive
Power Supply	PoE / DC 12V / DC 5V
Hardware Sockets	8 independent hardware sockets
Supported Protocols	TCP / UDP / ICMP / IPv4 / ARP / IGMP / PPPoE
PoE Features	Complies with IEEE802.3af, supports DC 37 ~ 57V input
PoE Power	Maximum 13W

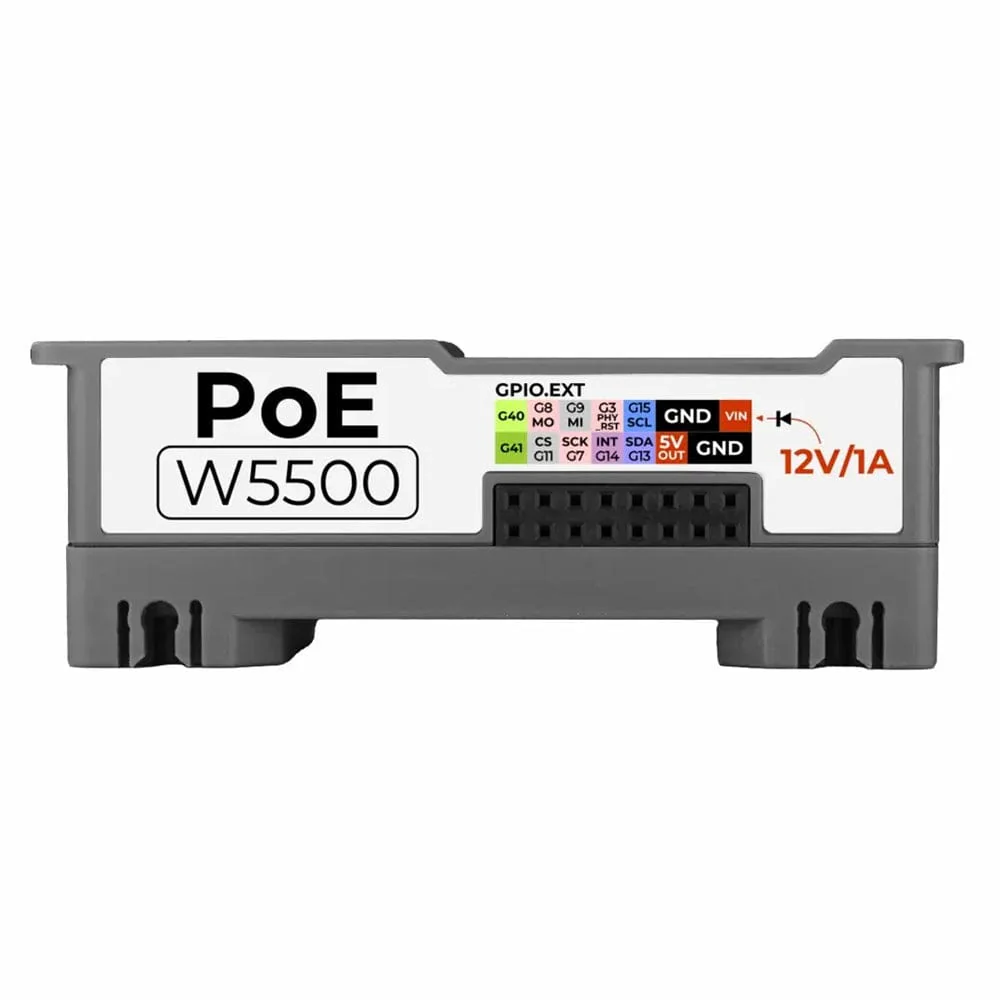

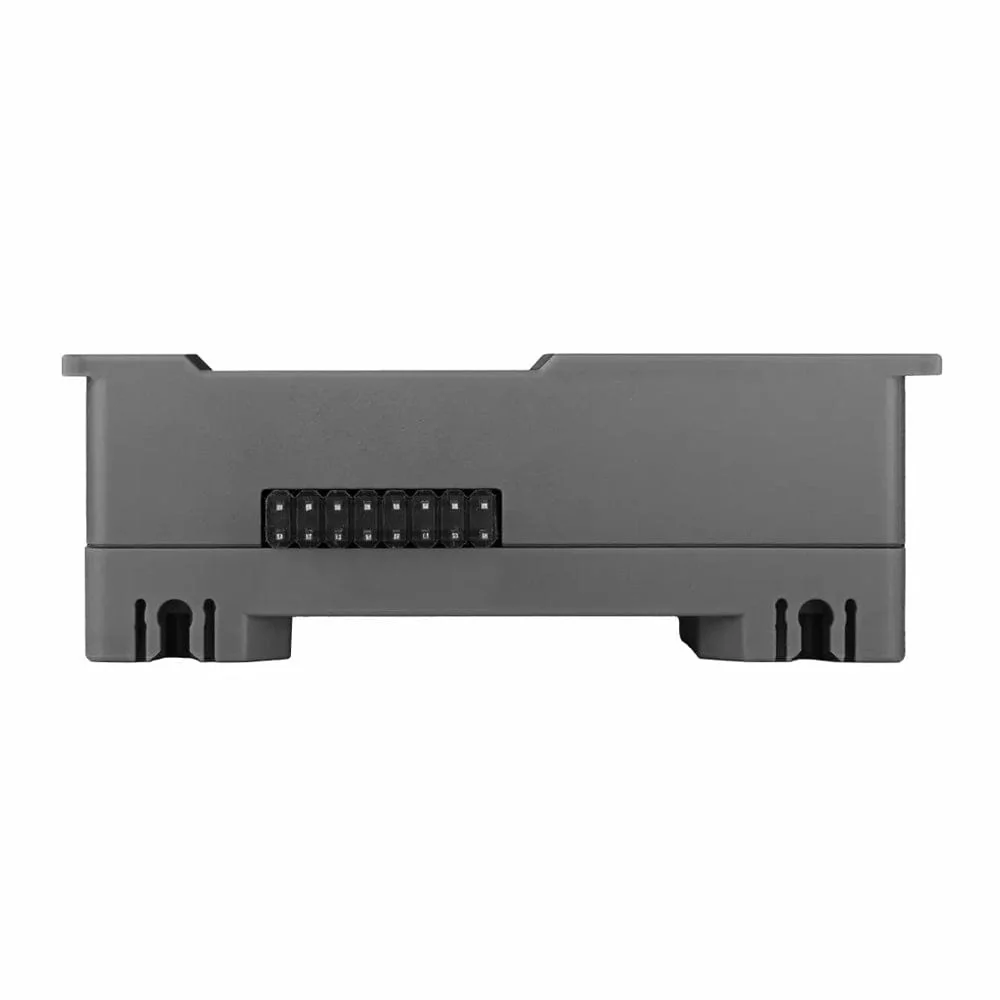

Interface Type	2 × 8P 2.54mm male / female headers, RJ45 Ethernet interface
MAC/PHY	Integrated 10/100M MAC & PHY
Installation Method	DIN rail mounting / mounting holes
Product Weight	70.8g

Resources

• Documents

Package Contents

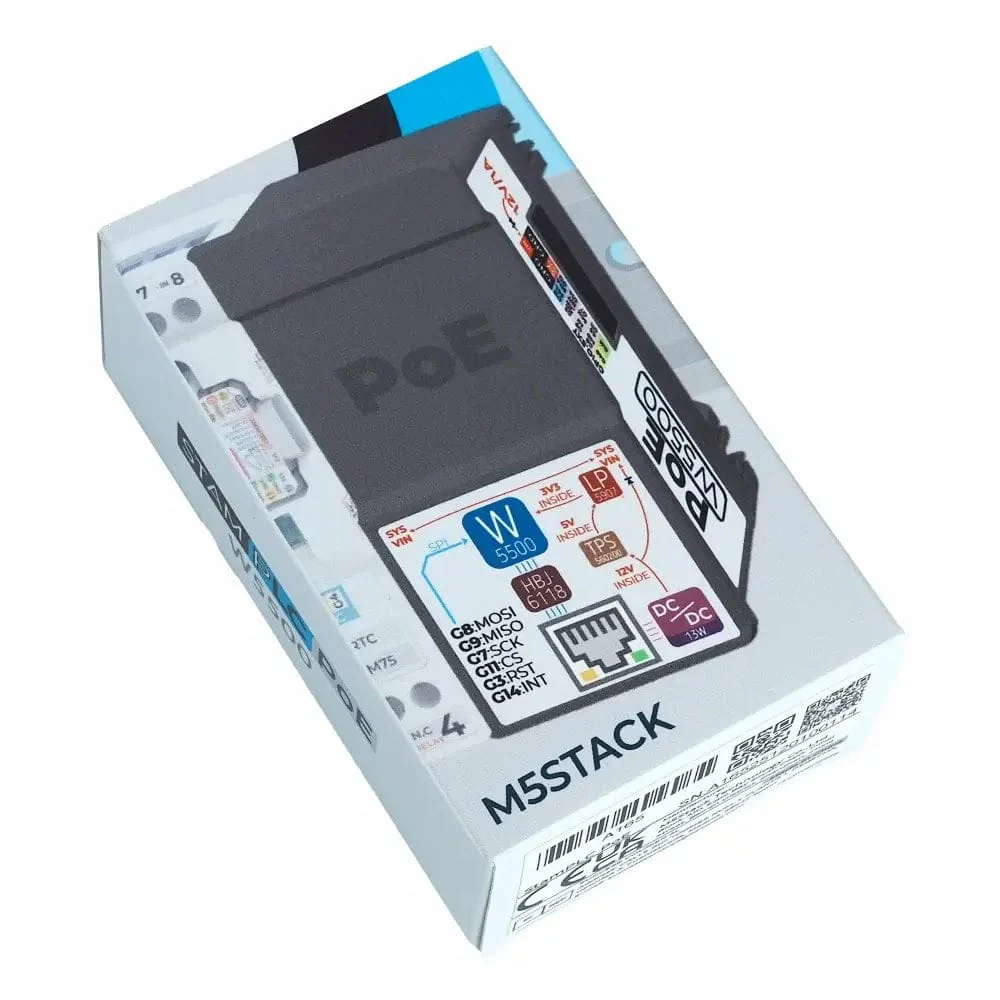

• 1 x StamPLC PoE
• 2 x Mounting connectors
