Chain ToF (VL53L0)

The M5Stack Chain ToF is a Chain-series laser distance sensor with a VL53L0C ranging module, measuring 3–200cm with ±3% accuracy. It supports UART daisy-chaining via dual HY2.0-4P ports for easy expansion in interactive projects.

---

The M5Stack Chain ToF is a laser ranging sensor node in the M5Stack Chain series, built for short-range, non-contact distance measurement and proximity detection. It integrates a VL53L0C laser ranging module, offering a measurement range of 3 to 200cm with ±3% accuracy, making it ideal for detecting objects and measuring distances in compact projects.

The module is powered by an STM32G031G8U6 MCU and communicates using a UART daisy-chain protocol. With two HY2.0-4P expansion ports, it can be easily linked with additional Chain series devices to create richer, more interactive applications.

Features

• M5Stack Chain series

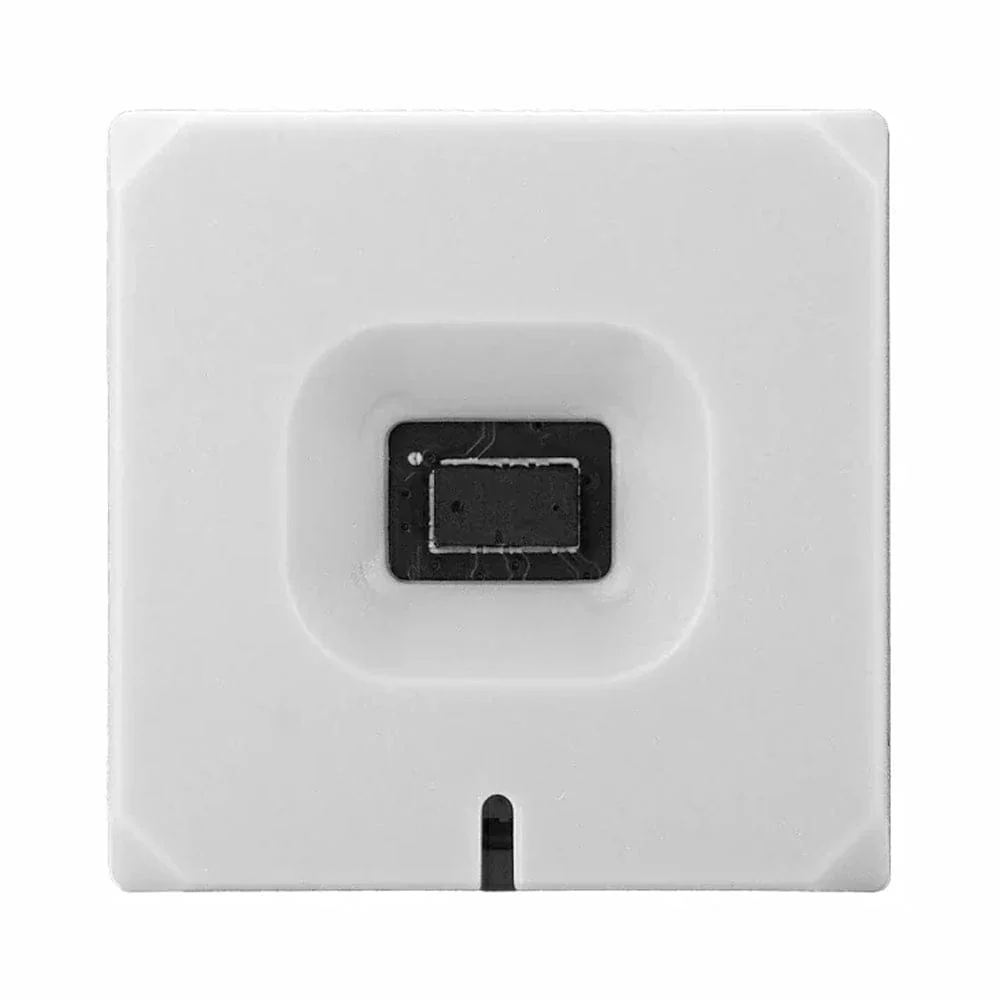

• VL53L0C laser ranging module
• 3 ~ 200cm measurement range
• STM32G031G8U6 core MCU
• UART serial daisy-chain communication protocol

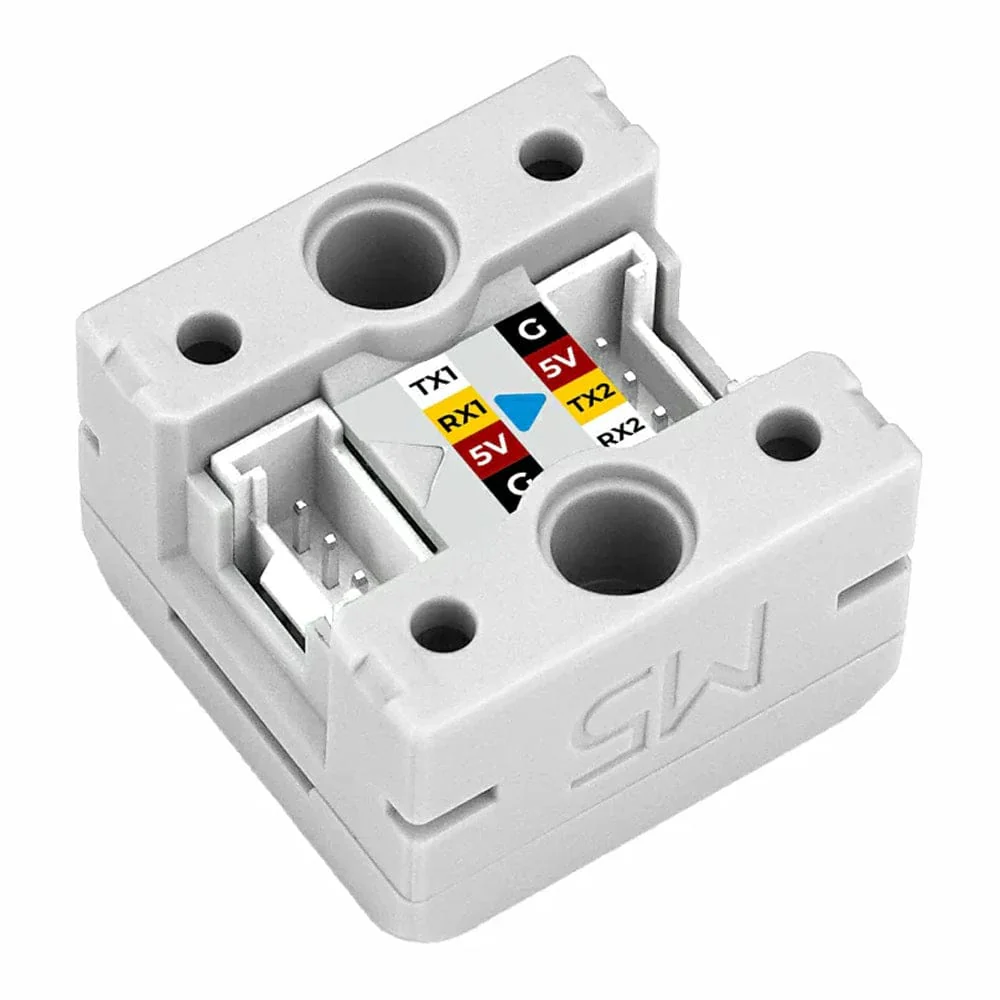

• 2 x HY2.0-4P expansion interfaces for extending Chain series devices

Specifications

MCU	STM32G031G8U6
Laser Module	VL53L0C
Measurement Range	3 ~ 200cm
Measurement Accuracy	±3%
Input Power	DC 5V
Communication Interface	UART

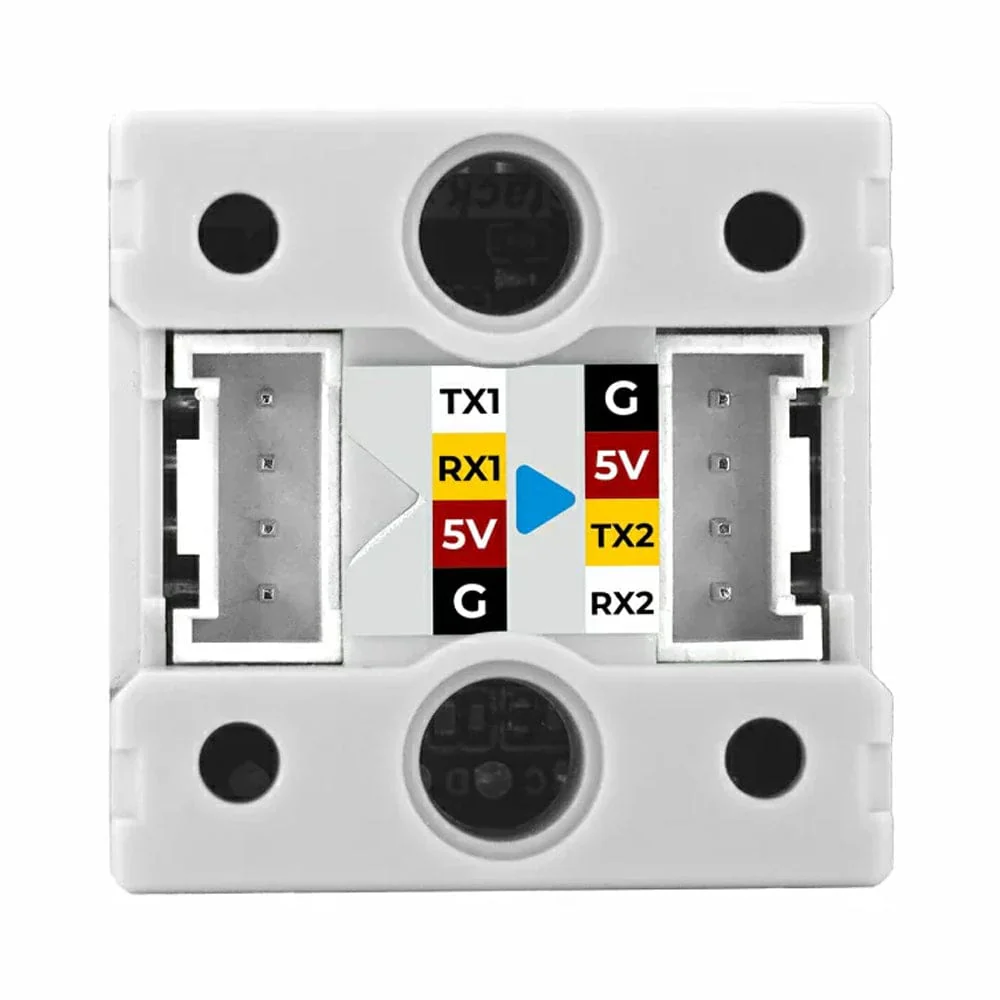

Interface Type	2 x HY2.0-4P
RGB LED	1 x WS2812C
Power Consumption	Stop mode (white RGB on): DC [email protected] Default mode single measurement: DC [email protected] Default mode continuous measurement: DC [email protected]
Operating Temperature	0 ~ 40°C

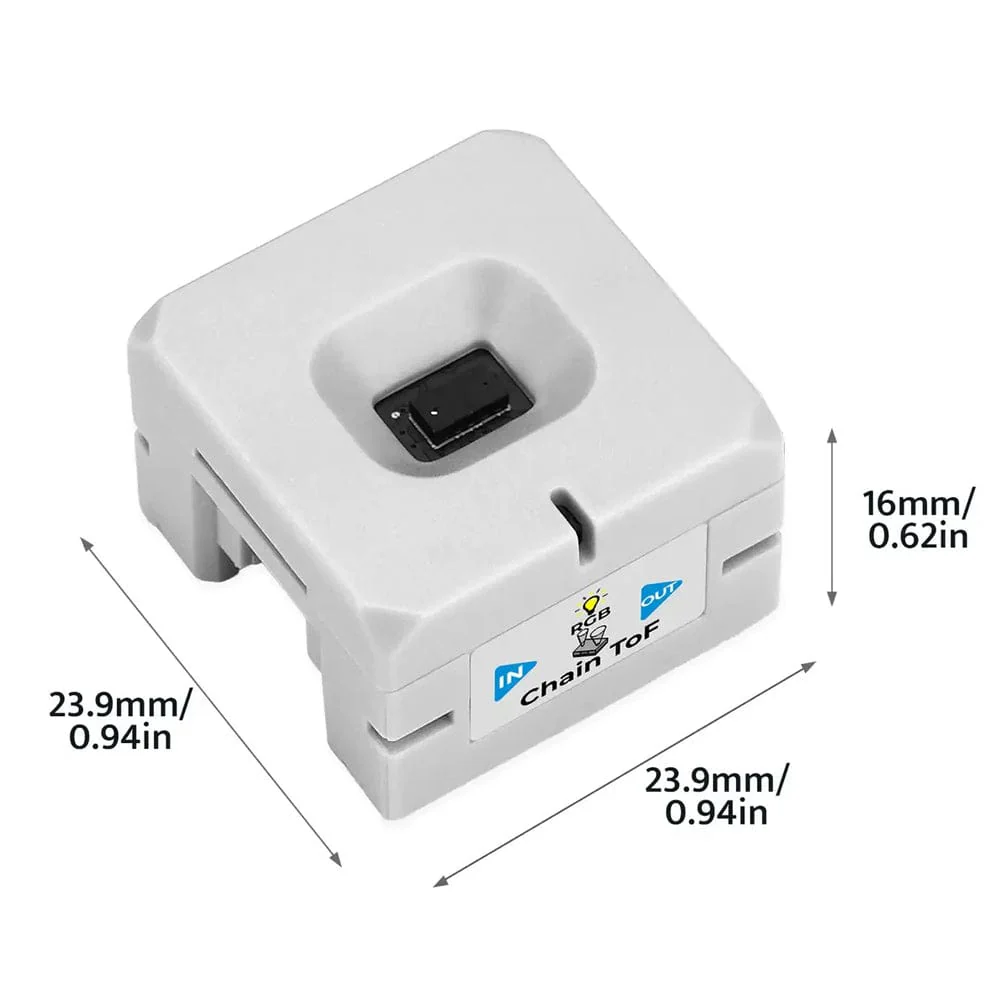

Product Size	23.9 x 23.9 x 16.0mm
Product Weight	8.8g

Resources

• Documents

Package Contents

• 1 x Chain ToF

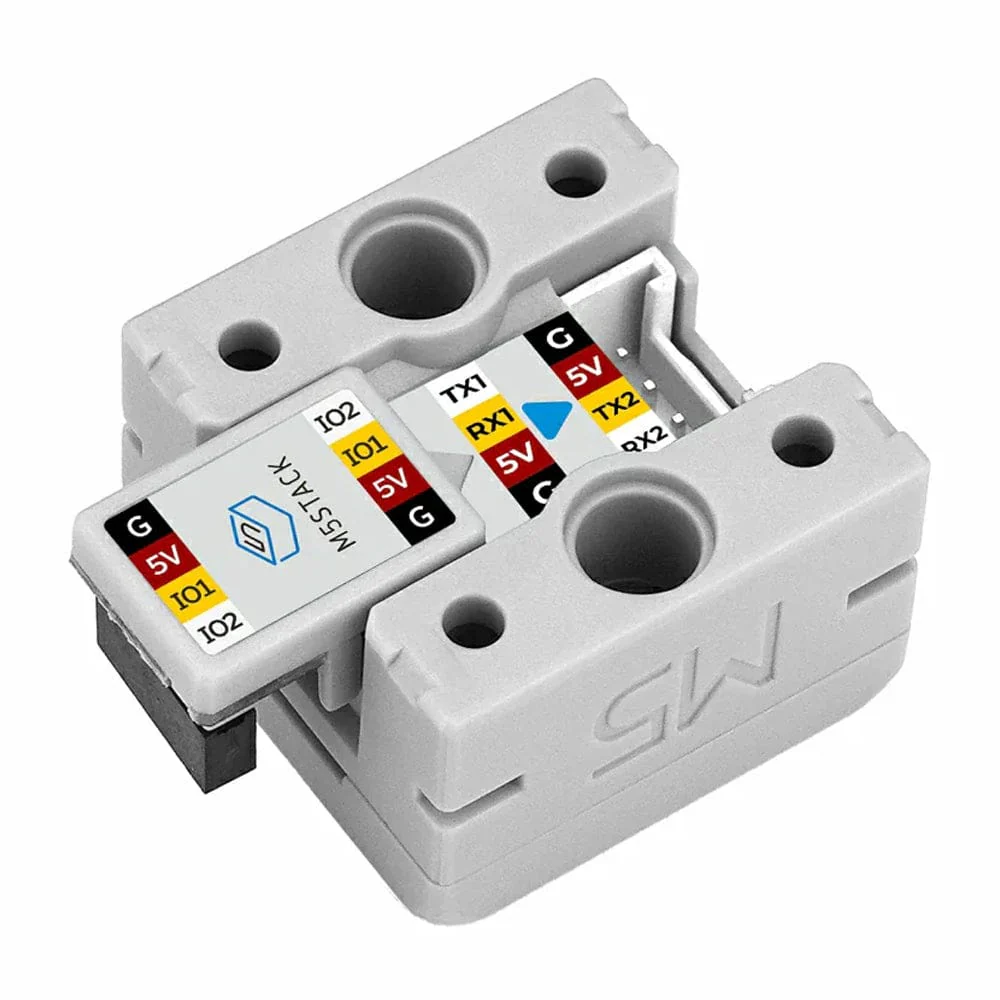

• 1 x Chain Bridge
