M5Stack Thread Border Router
The M5Stack CoreS3 Thread BR is a Thread Border Router kit combining the ESP32-S3-based CoreS3 (16MB Flash, 8MB PSRAM, Wi-Fi, 2.0" touch LCD, camera, mic, speaker, RTC and IMU) with an ESP32-H2 IEEE 802.15.4 RCP module for OpenThread networking.
The M5Stack CoreS3 Thread BR is a Thread Border Router kit built around the CoreS3 controller and the Module Gateway H2 wireless module. In this setup, the CoreS3 works as the control core of the edge gateway, running user applications alongside the OpenThread protocol stack.

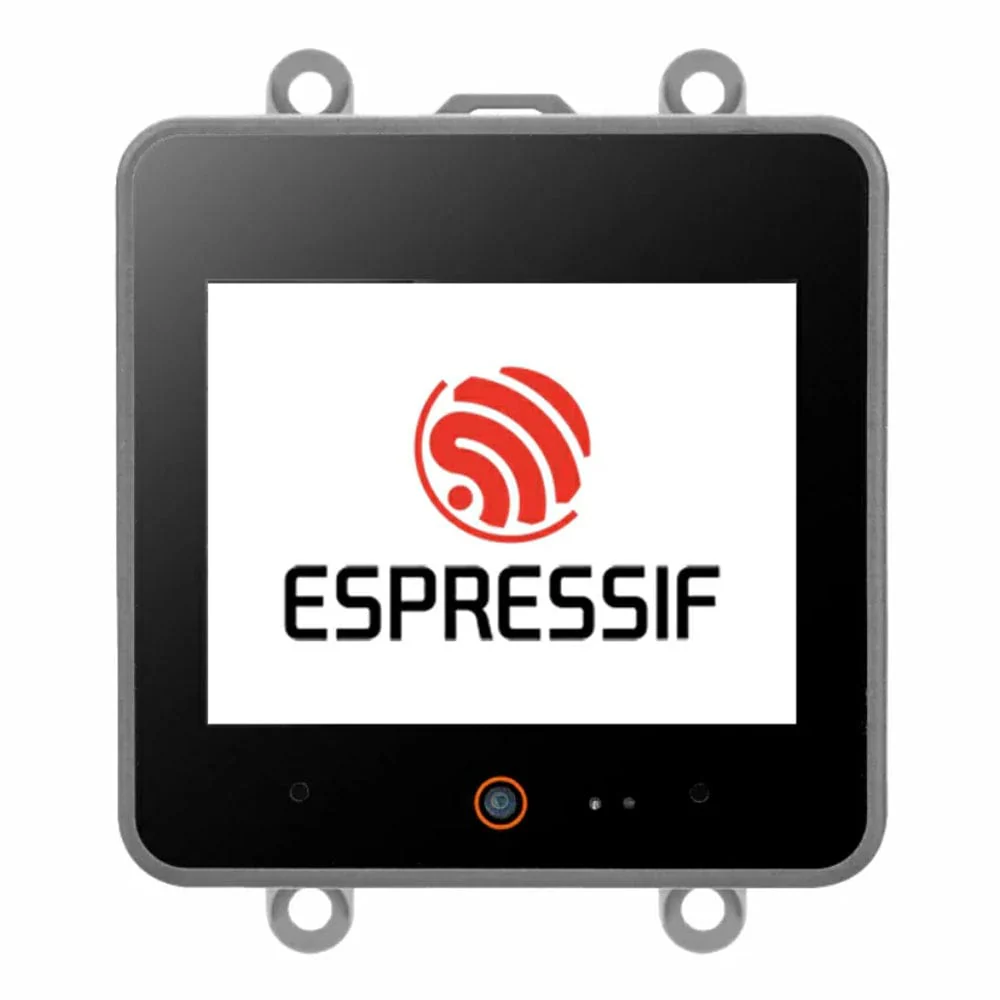

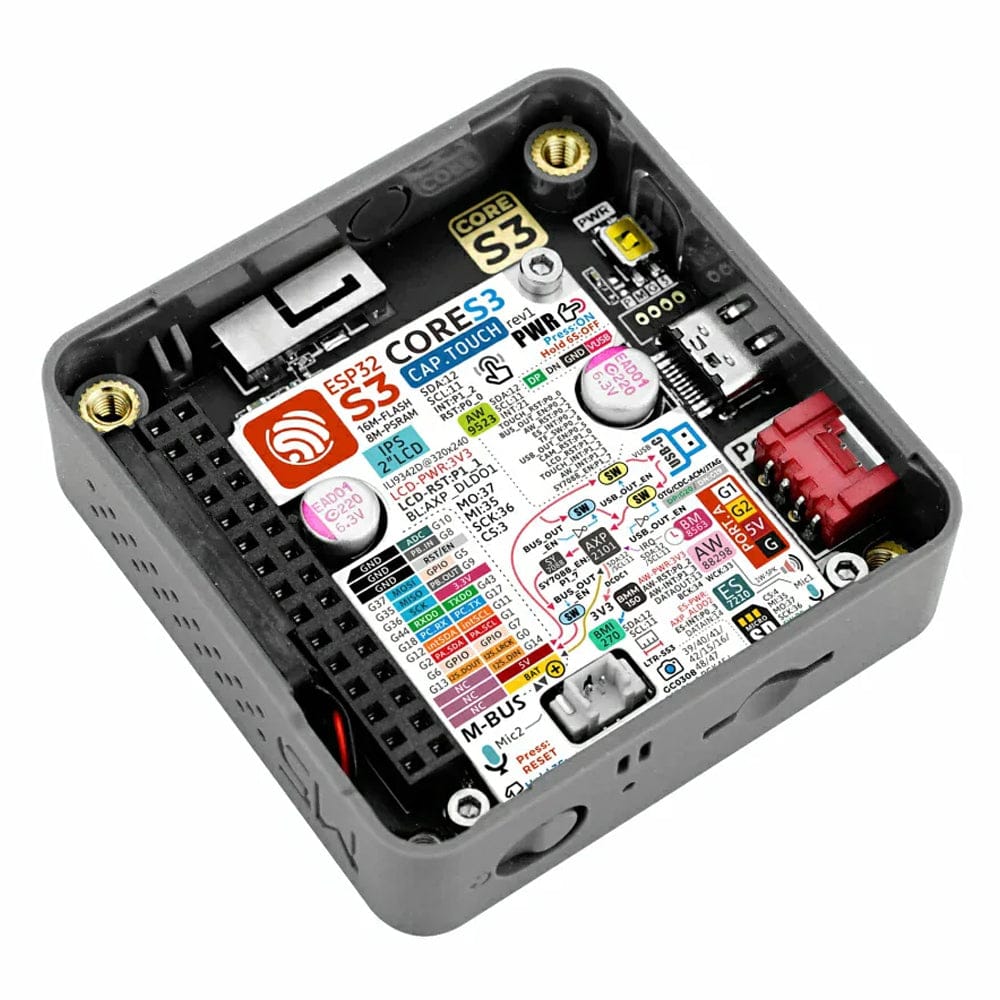

The CoreS3 controller is based on the ESP32-S3 SoC and includes 16MB Flash plus 8MB PSRAM. It supports 2.4 GHz Wi-Fi and comes packed with useful onboard hardware, including a 2.0" touch LCD display, camera, microphone, speaker, RTC, and a six-axis motion sensor, along with other rich peripherals.
The Module Gateway H2 is built around the ESP32-H2-MINI-1 module and supports IEEE 802.15.4 wireless communication. Acting as an OpenThread Radio Co-Processor (RCP), it provides thread packet forwarding capabilities for the CoreS3 main controller.
CoreS3 Thread BR is well suited for smart home systems, environmental monitoring, sensor networks, and low-power wireless communication nodes, making it a strong choice for fast prototyping and product development.
Lithium Battery Shipping: Due to courier restrictions, this product can only be shipped within the United Kingdom. With this item in your cart, your shipping options will be limited and may cost more than our usual rates. Why?
Features
- CoreS3 Core Controller
- ESP32-S3
- 16MB Flash
- 8MB PSRAM
- microSD Card Slot
- 9-axis IMU Sensor: BMI270 + BMM150
- RTC: BM8563
- USB-OTG
- 0.3MP Camera GC0308
- Proximity Sensor LTR-553ALS-WA
- Audio Codec ES7210
- Dual Microphone Input
- Hi-Fi Power Amplifier AW88298 + 1W Speaker
- Module Gateway H2 (RCP)
- ESP32-H2-MINI-1
- IEEE 802.15.4
- Zigbee, Thread, Matter

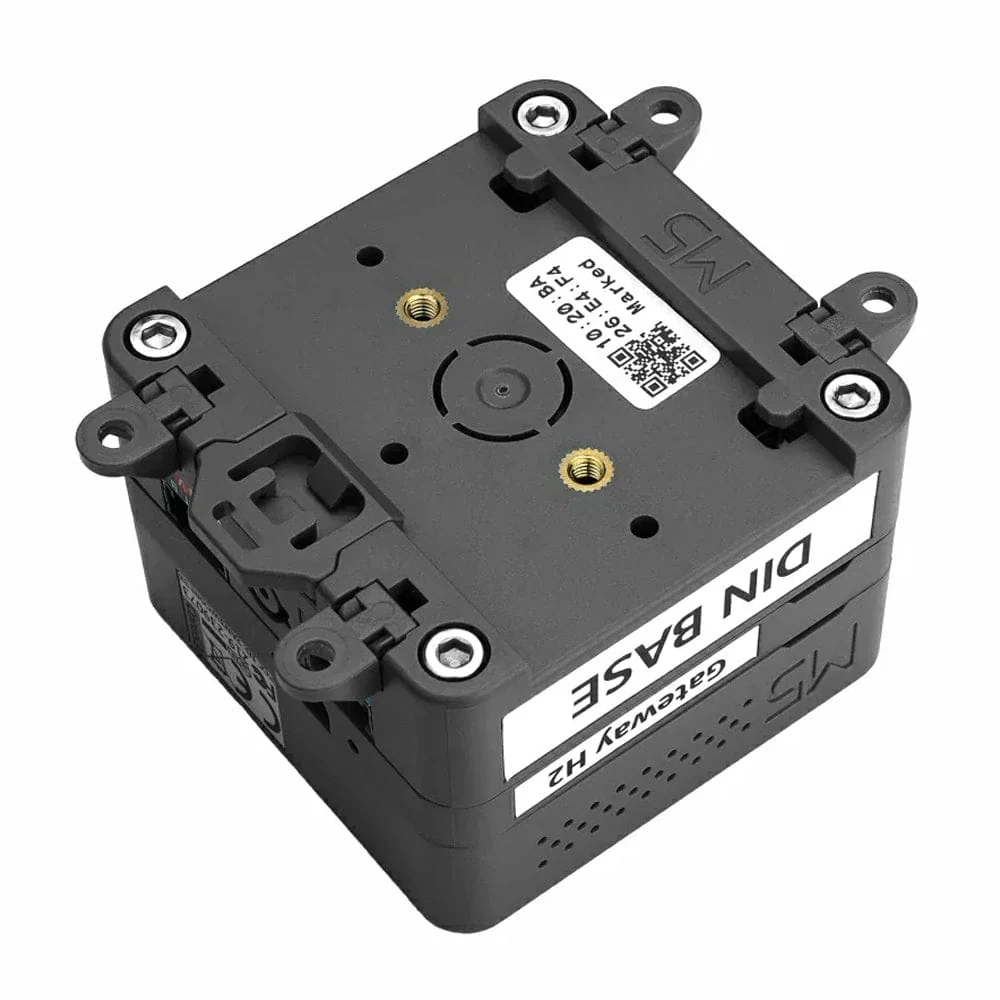

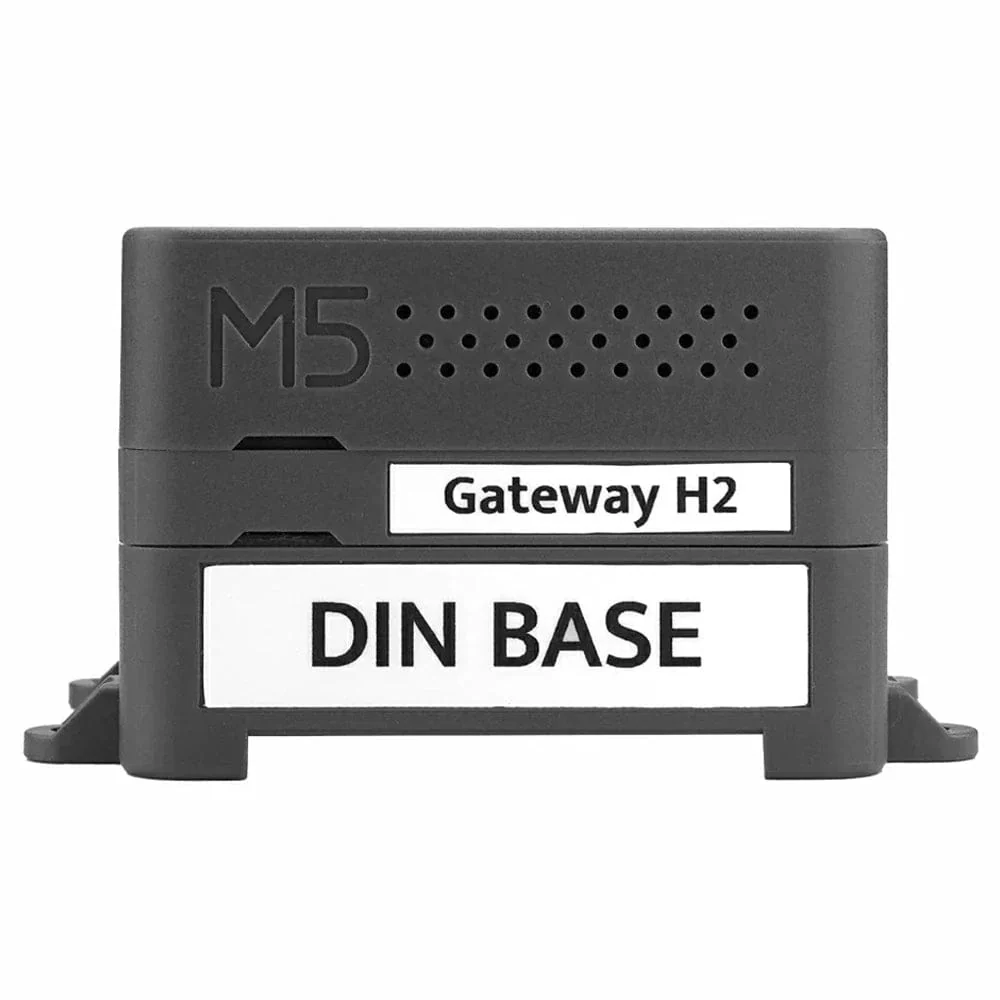

- Base DIN
- DIN rail mounting design
- Built-in 500mAh lithium battery
- Supports DC 9 ~ 24V input power supply
- Independent power switch
- 2x HY2.-4P expansion interfaces
Specifications
| SoC | ESP32-S3 @ Xtensa 32-bit LX7 Dual-core, 240MHz |
| Flash | 16MB |
| PSRAM | 8MB |
| Wi-Fi | 2.4 GHz Wi-Fi |
| Touch IPS LCD | 2.0"@320 x 240 ILI9342C |
| Camera | [email protected] |
| Proximity Sensor | LTR-553ALS-WA |
| Power Management | AXP2101 |
| 6-axis IMU | BMI270 |
| 3-axis Magnetometer | BMM150 |
| RTC | BM8563 |
| Speaker | 16bits-I2S Power Amplifier AW88298@1W |
| Audio Codec | ES7210, Dual Microphone Input |
| RCP | ESP32-H2-MINI-1 @ RISC-V 32-bit Single-core, 96 MHz |
| Base DIN Battery | Charging IC: TP4057 Battery Capacity: 500mAh |

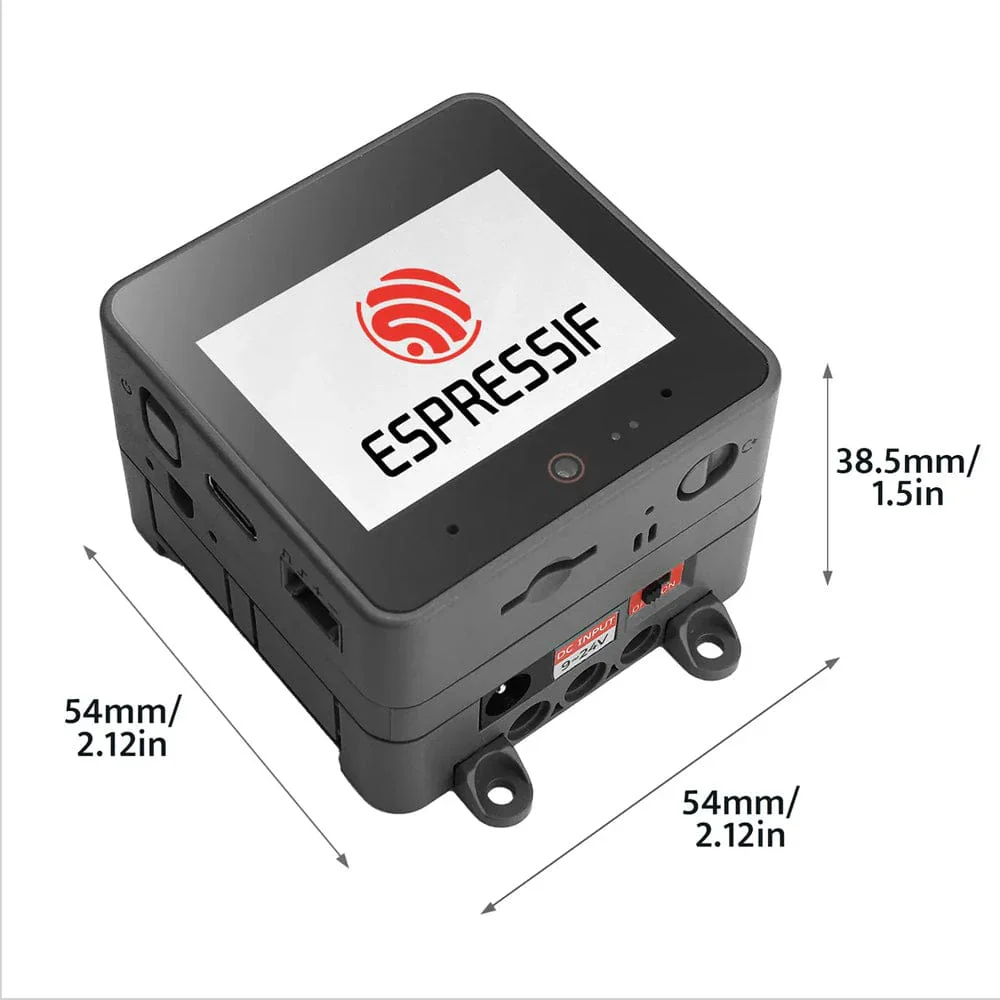

| Product Size | 54.0 x 54.0 x 38.1mm |
| Product Weight | 140.8g |
Resources
Package Contents
- 1x CoreS3 Thread BR
- 1x Hex Key L-Shape 2.5mm (for M3 Screws)
- 4x Screw Clips
- 1x DIN Rail Base Clip
