RP2350 1.64" AMOLED Touch Display Dev Board

This is an RP2350-based development board from Waveshare, with a compact 1.64" AMOLED touch display along with a bunch of cool features making it a useful option for a range of projects.

The RP2350 needs no introduction but we'll do it anyway - it's microcontroller chip designed by Raspberry Pi, with a unique dual-core and dual-architecture design with dual ARM Cortex-M33 or dual Hazard3 RISC-V processor support, a flexible clock running up to 150 MHz and 520KB of SRAM, supported by 16MB onboard flash.

The display is a 280x456 1.64" AMOLED panel, offering 16.7m colours, controlled via QSPI. It supports touch input via I2C, so you can use it as a simple interface for your project without the need for buttons or other inputs.

The board is powered and programmed via USB-C, alongside a PicoBlade-compatible/MX1.25 connector for a LiPo battery (battery not included, but we stock PicoBlade-compatible LiPo batteries in the store). The LiPo battery will be charged when USB-C power is connected, thanks to the onboard charge circuit.

You'll also find a microSD card slot for storage, a 6-axis IMU (3-axis gyroscope and a 3-axis accelerometer), and the usual BOOT/RESET buttons and indication LEDs (power/charge).

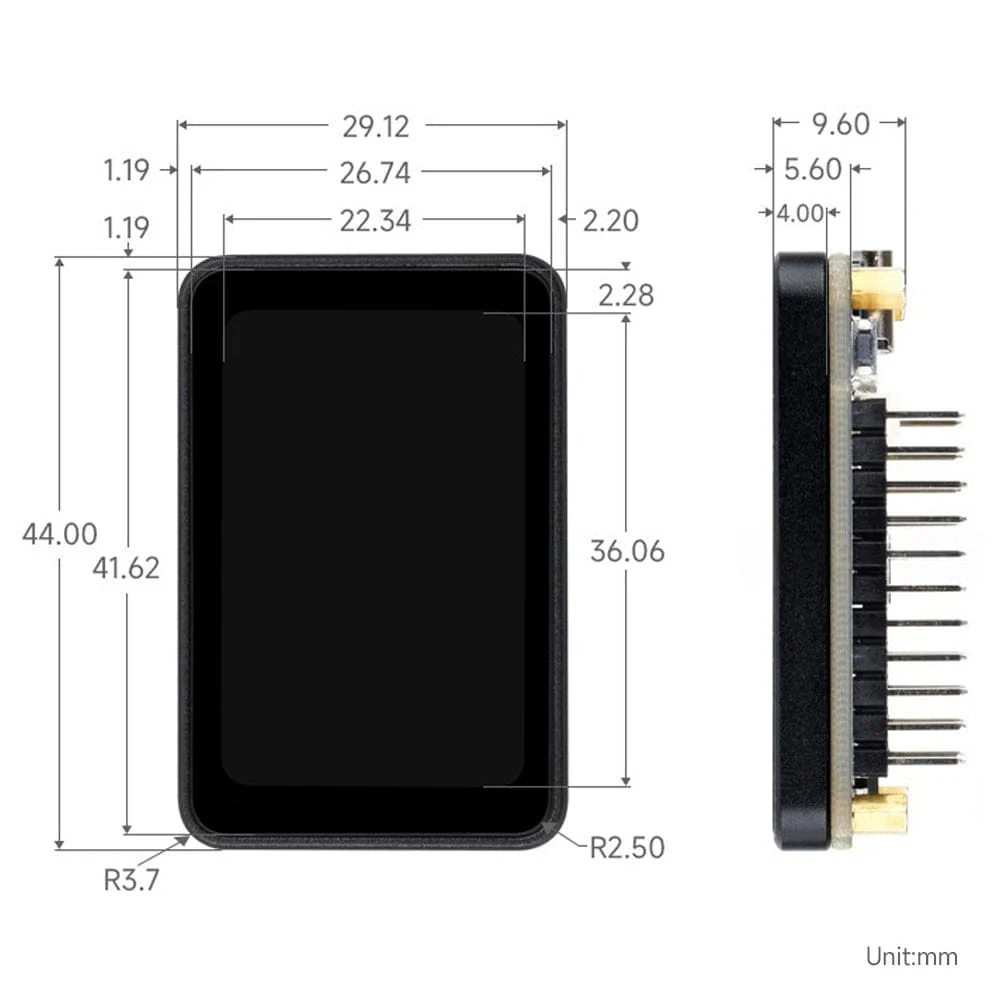

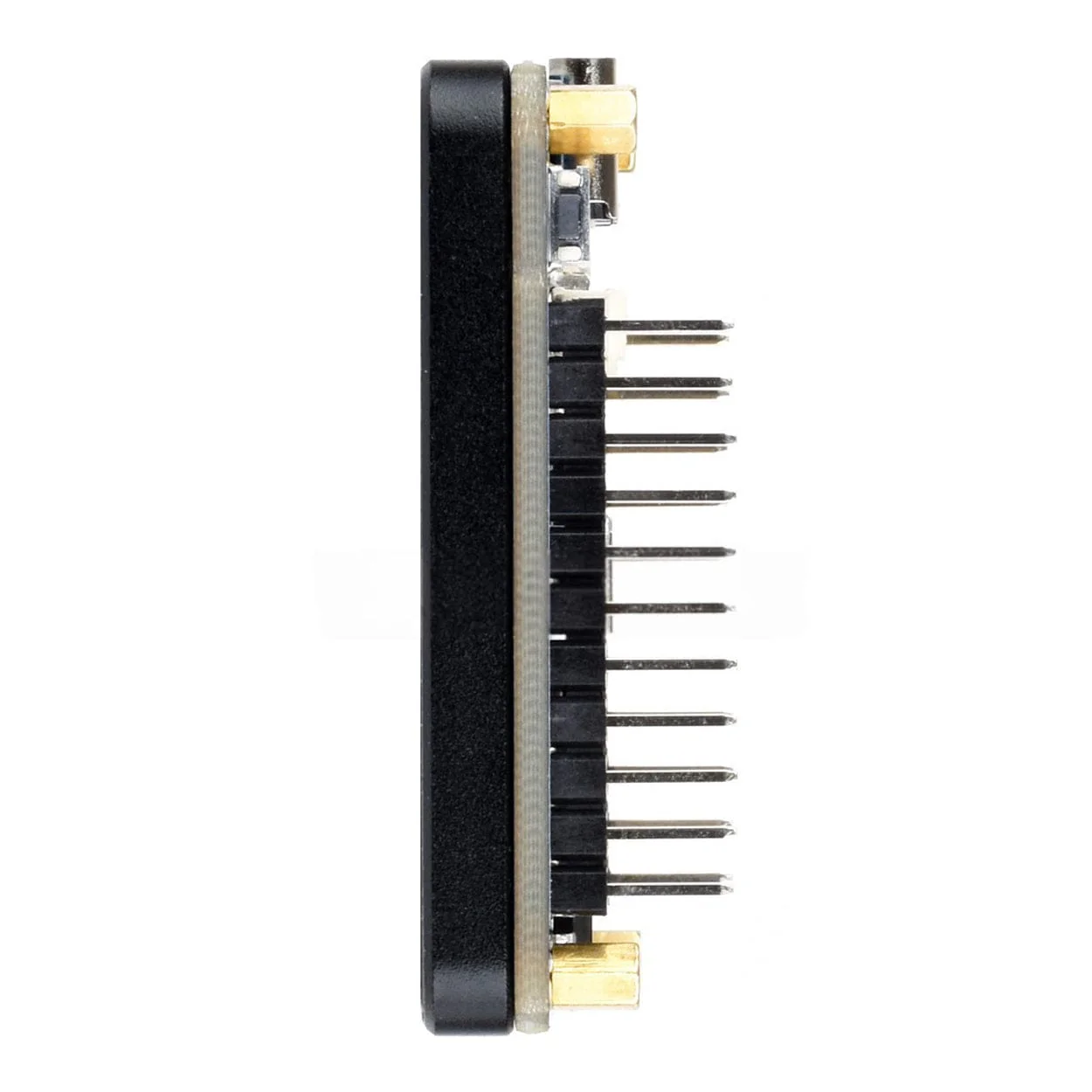

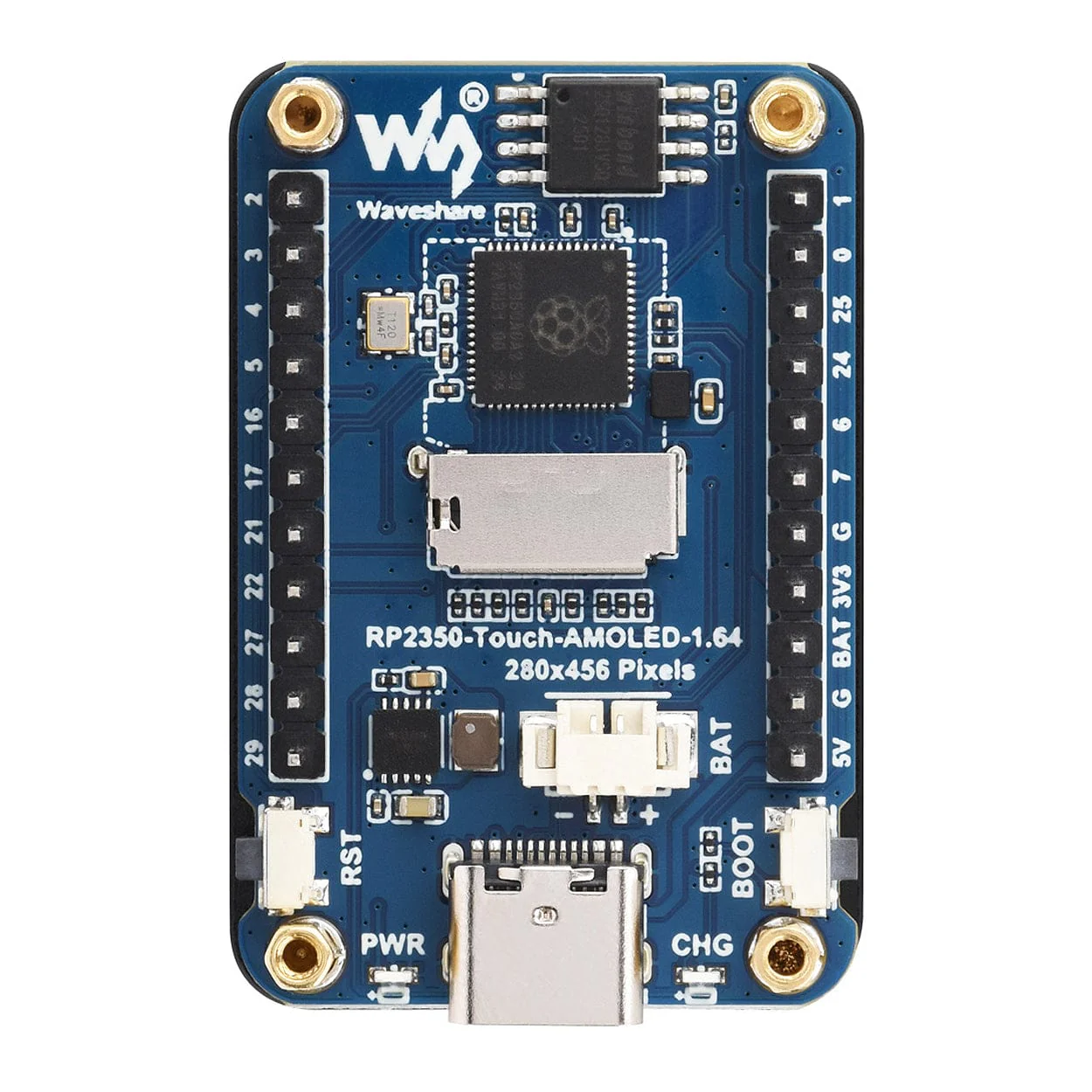

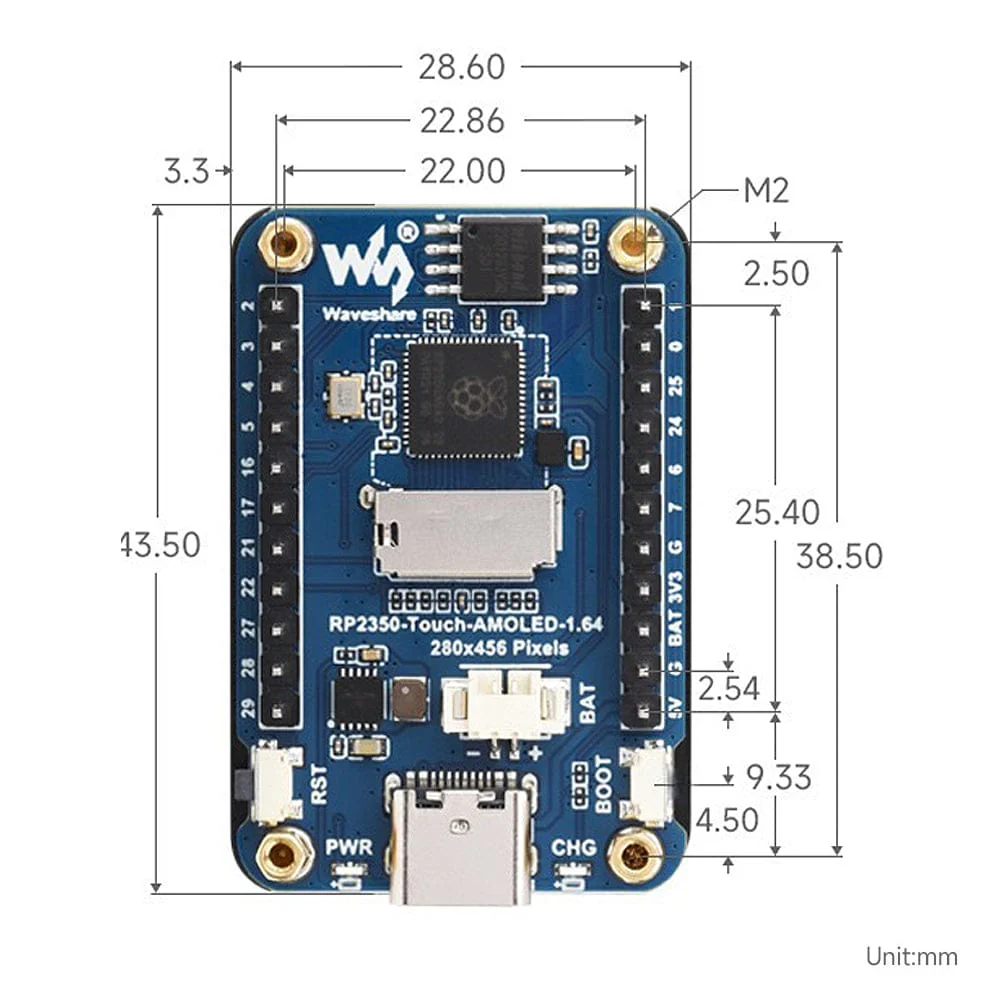

What's Onboard?

1. Reset button (RST)
2. Brass standoffs ×4 (M2×4+3)
3. W25Q128JVSIQ
   • 16 MB NOR flash
4. RP2350A
   • Dual‑core, dual‑architecture design; up to 150 MHz operating frequency
5. MicroSD card slot
6. QMI8658
   • 6‑axis IMU with a 3‑axis gyroscope and a 3‑axis accelerometer
7. MX1.25/PicoBlade-compatible battery header
   • MX1.25 2‑pin connector for a 3.7 V lithium battery; supports charging and discharging
8. Boot button
9. Charge indicator
10. USB‑C connector
    • For programming; USB 1.1 with device and host support
11. Power indicator

Features

• Microcontroller: RP2350A designed by Raspberry Pi
• CPU architecture: Dual‑core, dual‑architecture design with dual ARM Cortex‑M33 or dual Hazard3 RISC‑V, flexible clock up to 150 MHz
• Memory: 520 KB SRAM and 16 MB onboard flash
• Display: 1.64" AMOLED capacitive touch, QSPI interface, 280 × 456 resolution, 16.7M colours
• Display & touch controllers: CO5300 display driver and FT3168 capacitive touch chip using QSPI and I2C respectively
• USB: USB‑C connector with USB 1.1 device and host support
• Battery: Lithium battery charge/discharge header (MX1.25)
• GPIO: 17× GPIO pins with flexible function configuration
• Interfaces: 2× I2C, 2× UART, 3× 12‑bit ADC, 13× controllable PWM channels
• Programmable I/O: 12 × PIO state machines for custom peripheral support

Specifications

Display

Display panel	AMOLED
Display size	1.64"
Resolution	280 × 456
Display colours	16.7M
Brightness	350 cd/m²
Contrast ratio	60000:1
Communication interface	QSPI
Driver IC	C05300
Touch	Supported
Touch IC	FT3168

IMU

Sensor	QMI8658
Accelerometer	Resolution: 16 bits Measuring range (optional, SI, m/s²): ±19.61, ±39.23, ±78.45, ±156.91 m/s²
Gyroscope	Resolution: 16 bits Measuring range (optional, SI, rad/s): ±0.2793, ±0.5585, ±1.1170, ±2.2340, ±4.4680, ±8.9360, ±17.8722, ±35.7443 rad/s

Resources

• Product Wiki

Board Pinout

Display Pin Mapping

AMOLED pin	RP2350 pin	Description
QSPI_CS	GPIO9	QSPI chip selection
QSPI_CLK	GPIO10	QSPI clock pin
QSPI_D0	GPIO11	QSPI D0 data
QSPI_D1	GPIO12	QSPI D1 data
QSPI_D2	GPIO13	QSPI D2 data
QSPI_D3	GPIO14	QSPI D3 data
AMOLED_RESET	GPIO15	AMOLED reset pin
TP_SDA	GPIO6	TP I2C data pin
TP_SCL	GPIO7	TP I2C clock pin

Package Contents

• 1x RP2350 1.64" AMOLED Touch Display Dev Board
