RP2350 1.8" AMOLED Touch Display Dev Board (368×448)

An RP2350-based AMOLED 1.8" touch display dev board with USB-C, LiPo charging (battery optional), onboard IMU, MicroSD slot, RTC, audio codec, speaker, microphone and more!

---

This little display dev board is based on the powerful Raspberry Pi RP2350A with its dual-core, dual-architecture support and flexible clock running up to 150 MHz. This is backed up by 520KB of SRAM, and 16MB onboard Flash memory.

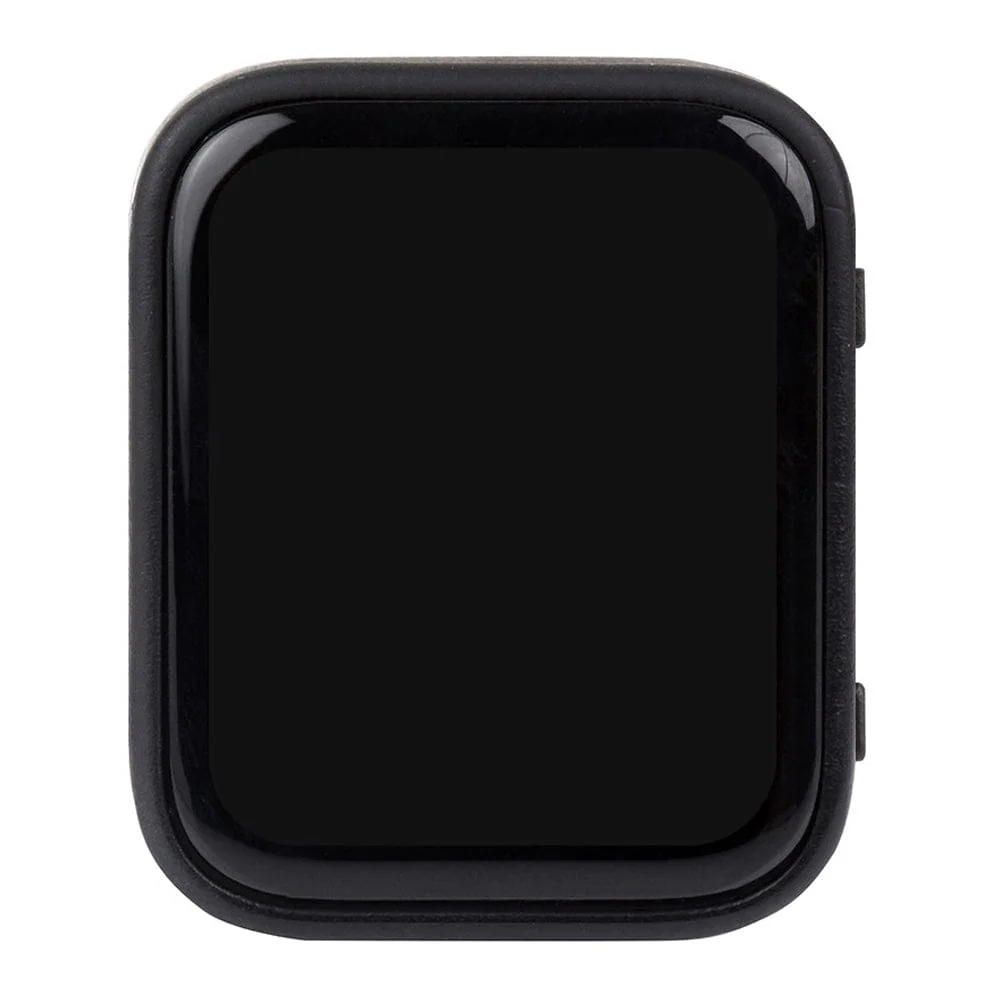

The display is a 1.8" 368x448 AMOLED touch panel, offering 178° viewing angles, 16.7M colours and touch support via I2C.

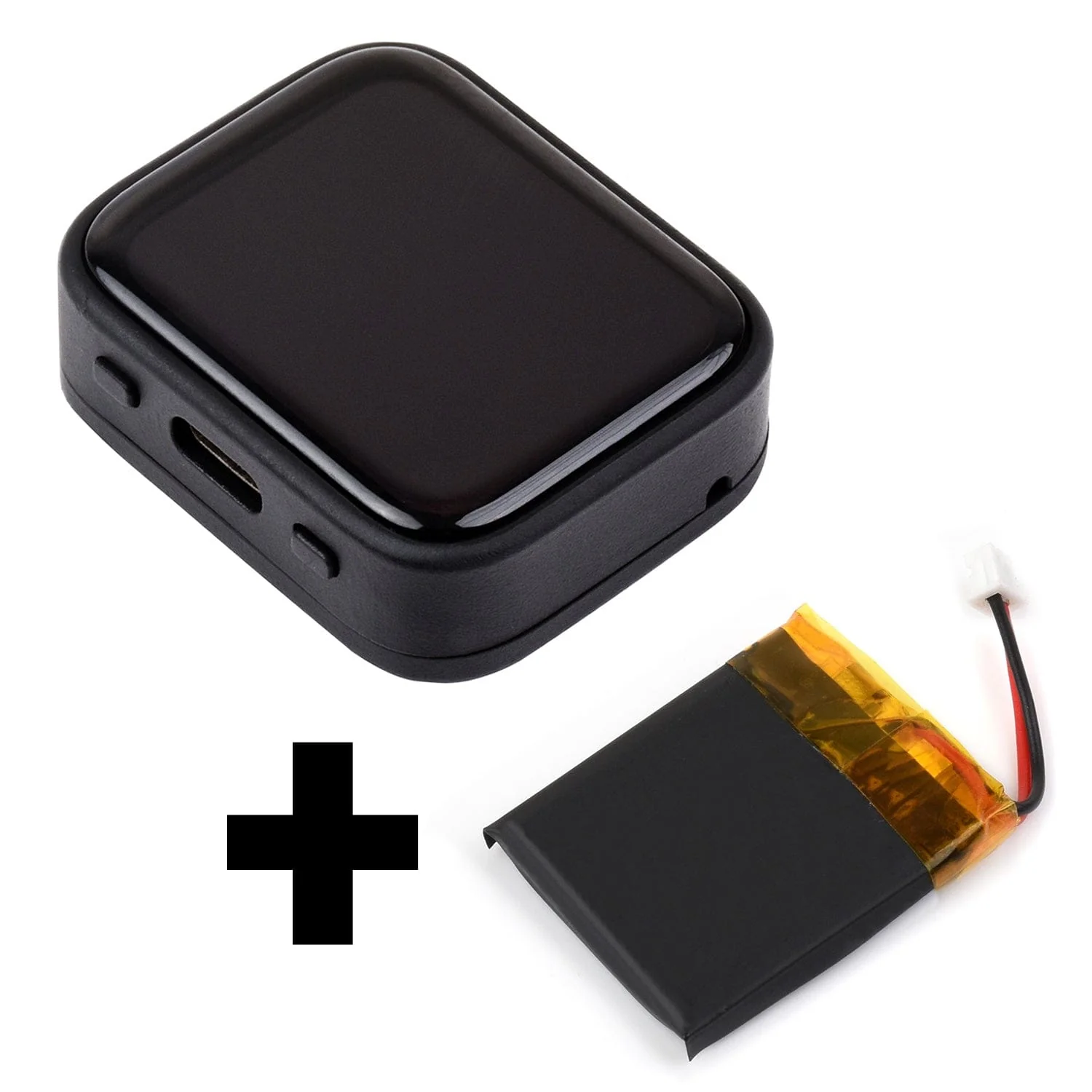

Programming and wired power is handled by USB-C, with the option to connect a MX1.25/PicoBlade-compatible LiPo battery (or grab the version that comes with a battery sized perfectly for the case). There are also pads to solder a backup RTC battery directly to the internal PCB.

Additional features include a 6-axis IMU consisting of a 3-axis gyroscope and 3-axis accelerometer, and a real-time clock with battery backup pads. Audio is output through a built-in speaker driven by an audio codec and amplifier. A MicroSD slot is provided for storage, and the board is equipped with BOOT and PWR buttons.

---

Lithium Battery Shipping: Due to courier restrictions, the battery version of this product can only be shipped within the United Kingdom. With this item in your cart, your shipping options will be limited and may cost more than our usual rates. Why?

---

Features

• RP2350A microcontroller chip officially designed by Raspberry Pi
  • Unique dual-core and dual-architecture design
  • Equipped with dual-core ARM Cortex-M33 processor and dual-core Hazard3 RISC-V processor
  • Flexible clock running up to 150 MHz, supporting flexible switching between the two architectures
  • Built-in 520KB of SRAM
• 16MB onboard Flash
• USB-C connector
• 1.8" high-definition capacitive touch AMOLED screen
  • 368×448 resolution
  • 16.7M colours
  • SH8601 driver chip (QSPI)
  • FT3168 capacitive touch chip (I2C)
• 6-Axis IMU (3-axis gyroscope and a 3-axis accelerometer)
• Real-time Clock with battery backup pads
• Built-in speaker supported by an audio codec chip and amplifier
• MicroSD slot
• BOOT and PWR buttons
• Lithium battery recharge/discharge header (battery optional)
• Low-power sleep and dormant modes

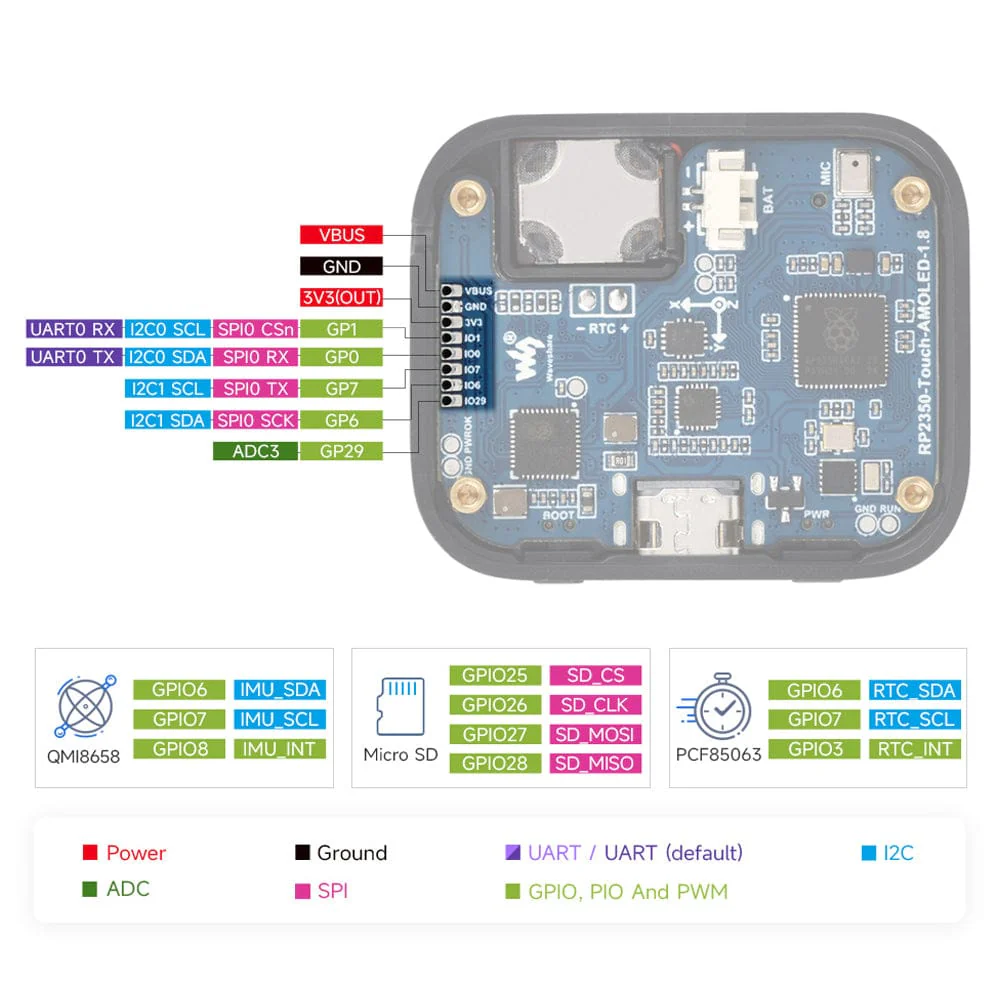

What's onboard

1. RP2350A
   • Dual-core and dual-architecture design, up to 150 MHz operating frequency
2. QMI8658
   • 6-axis IMU includes a 3-axis gyroscope and a 3-axis accelerometer
3. PCF85063
   • RTC chip
4. ES8311
   • Low-power mono audio codec
5. AXP2101
   • Highly integrated power management IC
6. PWR button
   • For system power supply ON/OFF, supports custom functions

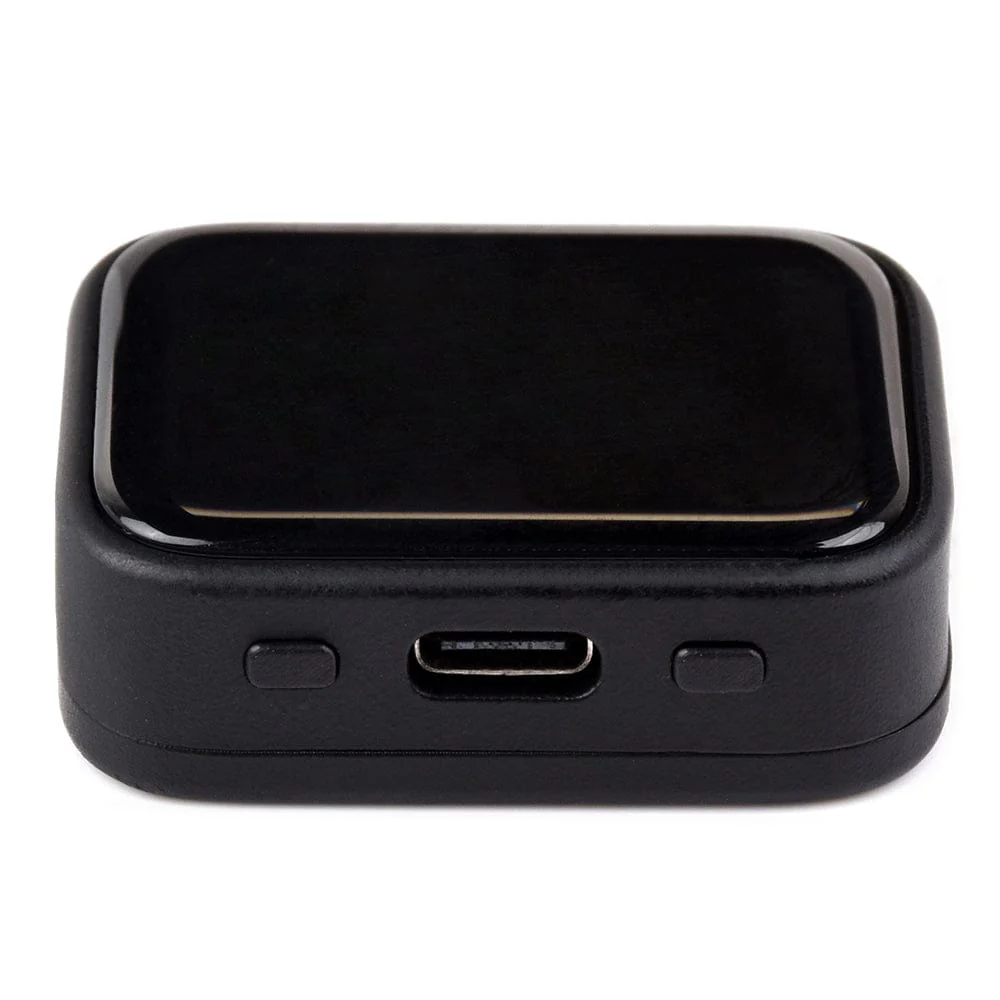

7. Type-C connector
   • For programming, USB 1.1 with device and host support
8. BOOT button
   • For device startup and function debugging
9. Speaker
10. Backup battery pads
    • For connecting backup battery, ensuring RTC function during the replacement of the main battery
11. MX1.25 Lithium battery header

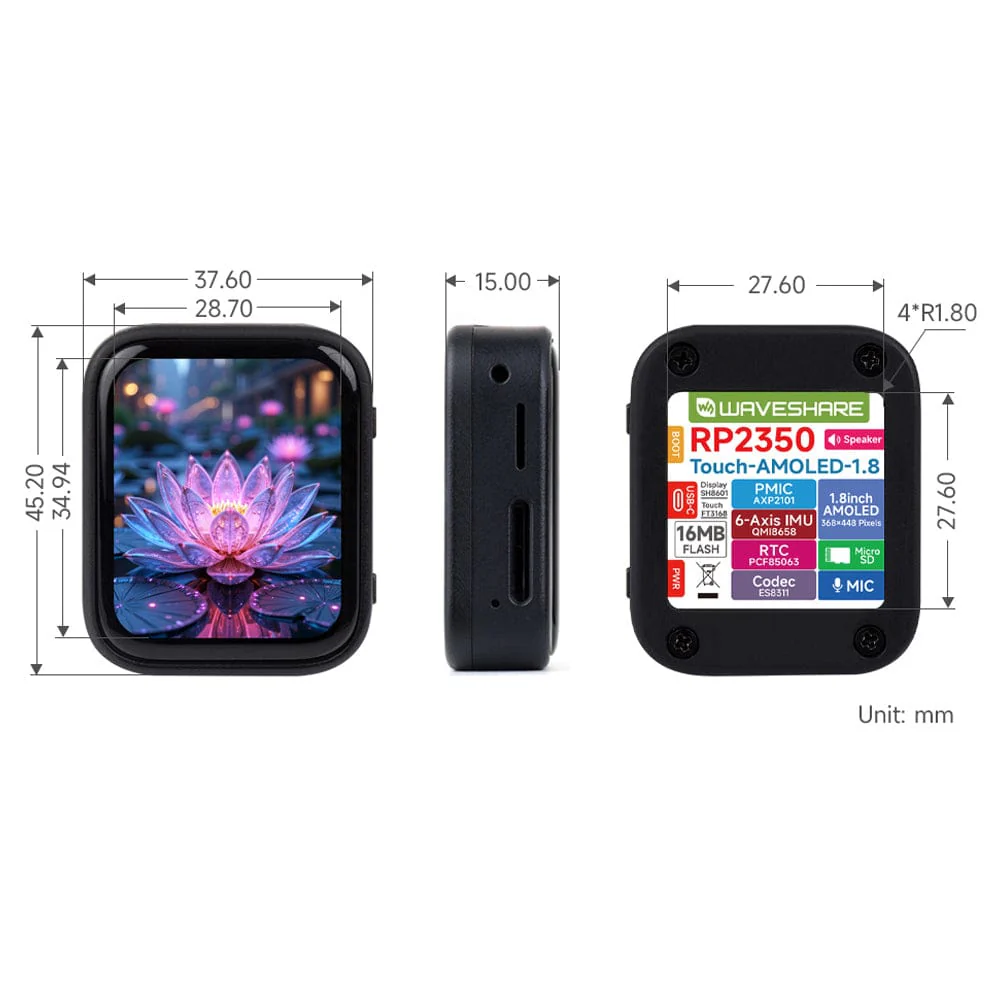

    • MX1.25 2P connector, for 3.7V Lithium battery (optional), supports charging and discharging. (To fit inside the case, a battery size of 3.85 × 24 × 28 mm is recommended)
12. Microphone
13. TF card slot
14. W25Q128JVSIQ
    • 16MB NOR-Flash
15. NS4150B
    • Audio power amplifier

Display Specifications

Display panel	AMOLED
Display size	1.8"
Resolution	368 × 448 pixels
Display colours	16.7m
Brightness	350 cd/㎡
Contrast ratio	100000:1
Communication interface	QSPI
Driver IC	SH8601
Touch	Supported
Touch IC	FT3168

IMU Parameters

Sensor name	QMI8658
Accelerometer characteristics	Resolution: 16 bits Measuring range (optional): ±2, ±4, ±8, ±16g
Gyroscope characteristics	Resolution: 16 bits Measuring range (optional): ±16, ±32, ±64, ±128, ±256, ±512, ±1024, ±2048°/sec

Resources

• Product Wiki

Package Contents

• 1x RP2350 1.8" AMOLED Touch Display Dev Board (368×448)
• [OPTIONAL] 1x MX1.25/PicoBlade-compatible Lithium battery
