ESP32 Downloader Kit

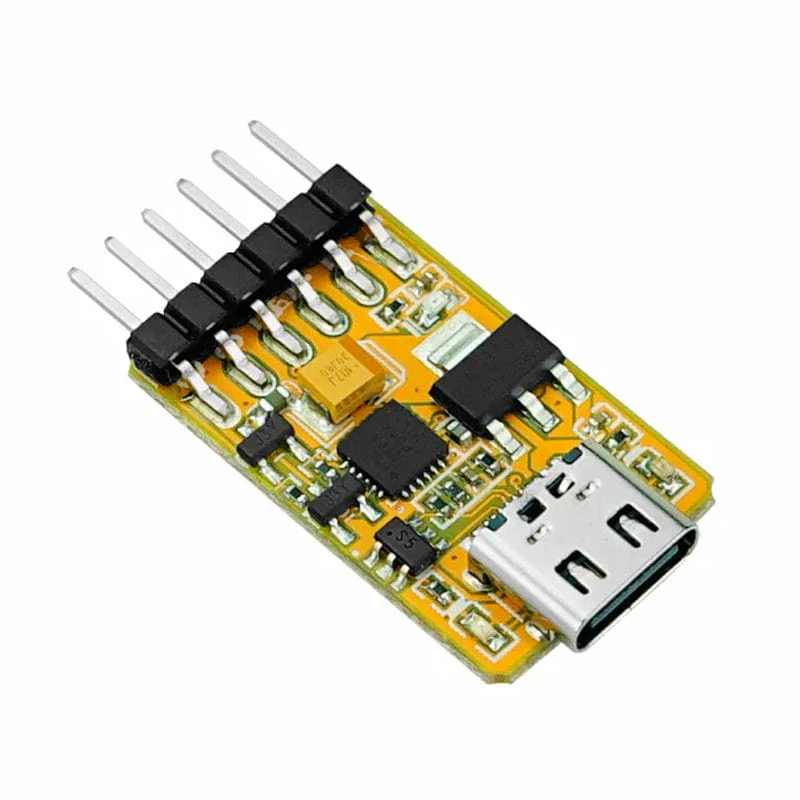

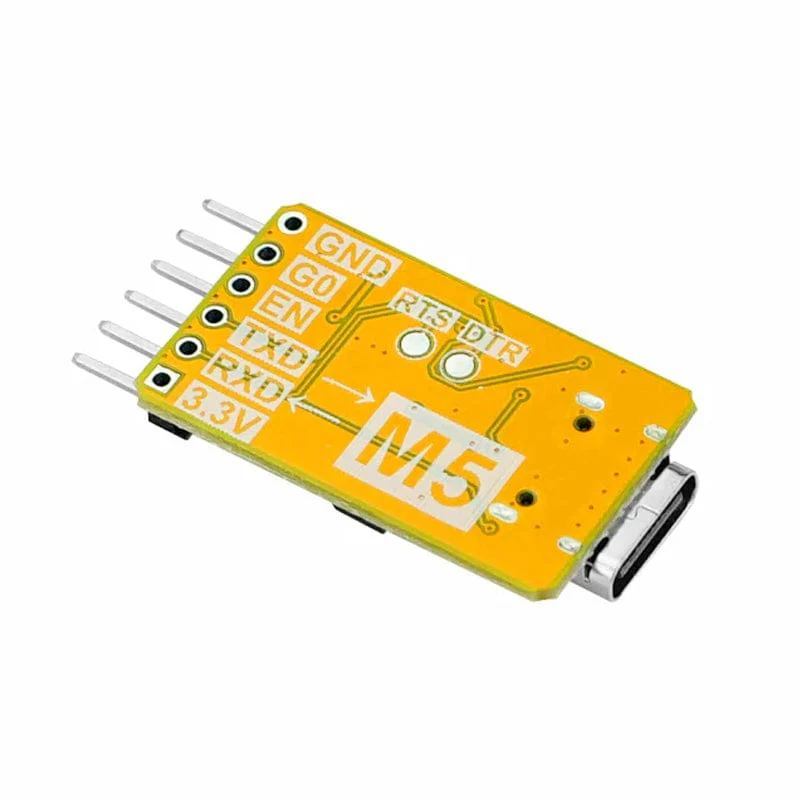

This ESP32 downloader kit is a USB-TTL adapter board designed for ESP32 and ESP8266 devices. The kit includes a CP2104/CH9102 chip, allowing for one-touch downloads without manual resetting via chip and pin. The plug-in board and pin headers are very useful for programming or serial debugging ESP32/ESP8266 development boards or M5Stack series products.

If you are looking for a suitable UNIT CAM for a simple plug-and-burn, click here

The Espressif board is NOT included

Note: We may ship The CP2104 chip or CH9102F chip. Both are high-quality

Features

• Type-C Connector
• ESP32/ESP8266 program downloader

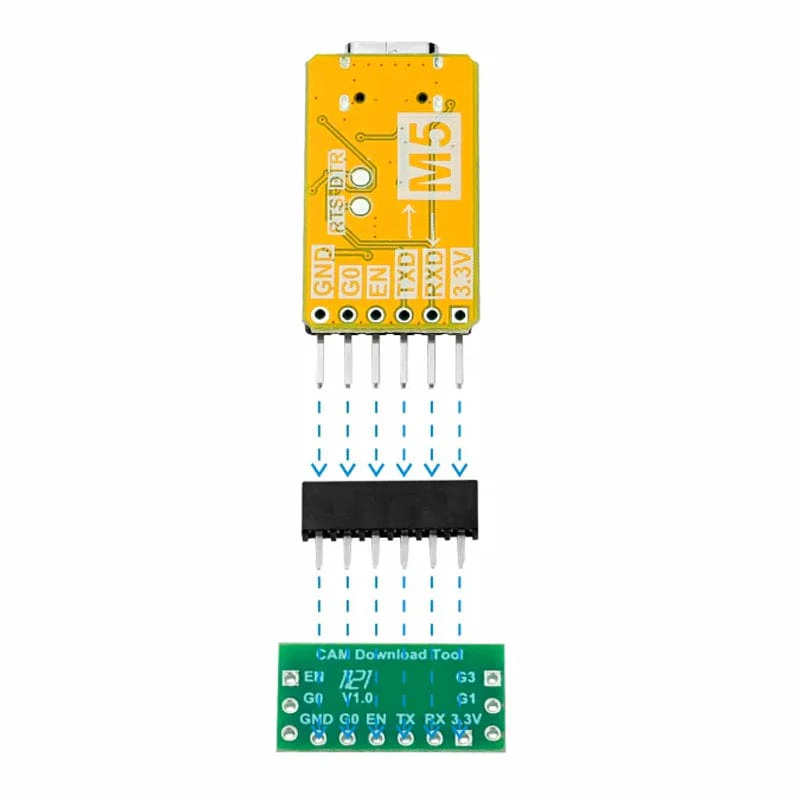

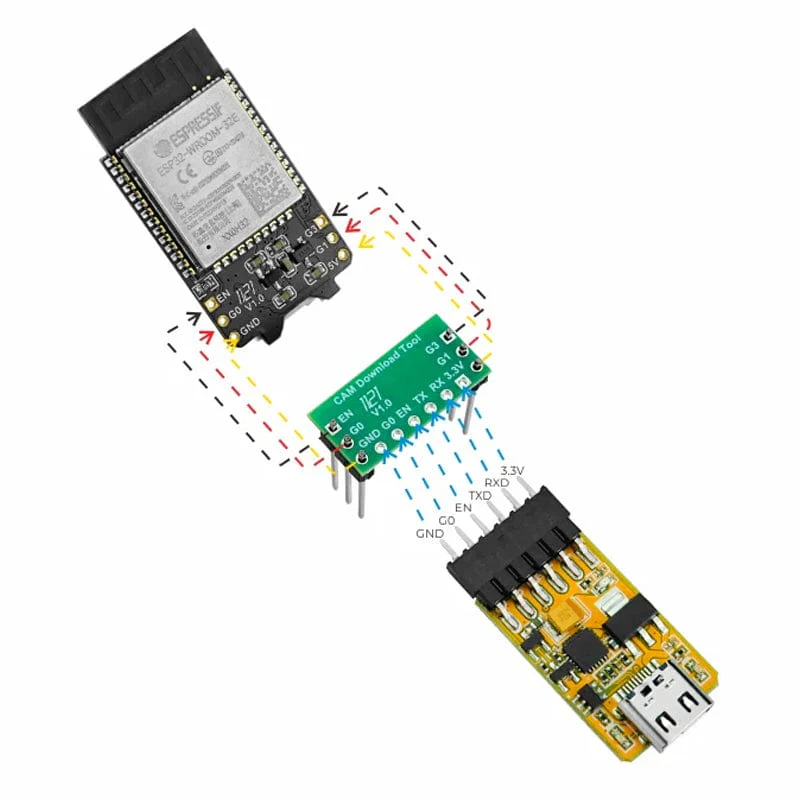

• Matching the IO sequence of various M5Stack products, direct plug and burn, no wiring required (UNIT CAM/STAMP series, etc.)
• Receive/send buffer
• Compliant with USB 2.0 specifications

Specifications

USB-TTL IC	CP2104/CH9102F
USB Connector Type	Type-C
Baud Rate	300bps to 2Mbps
Supported Data Formats	Data bits: 5, 6, 7, and 8
	Stop bits: 1, 1.5, and 2
	Parity: odd, even, mark, space, no parity
Buffer	576-byte receive buffer, 576-byte send buffer
Net Weight	10g
Gross Weight	11g
Product Dimensions	33 x 16 x 3mm
Package Size	90 x 60mm (static bag)

Resources

• Product Wiki

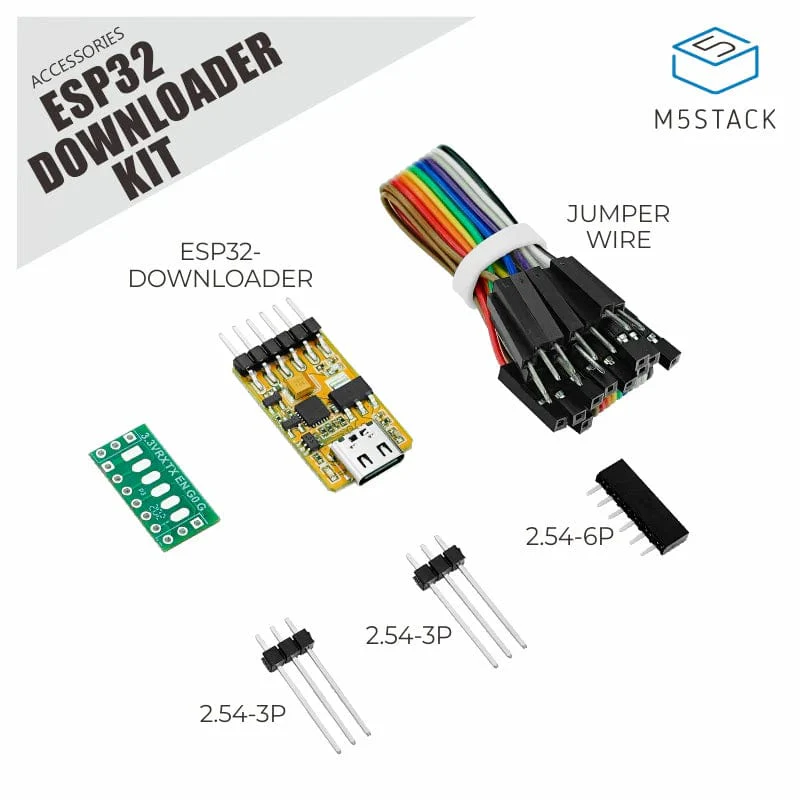

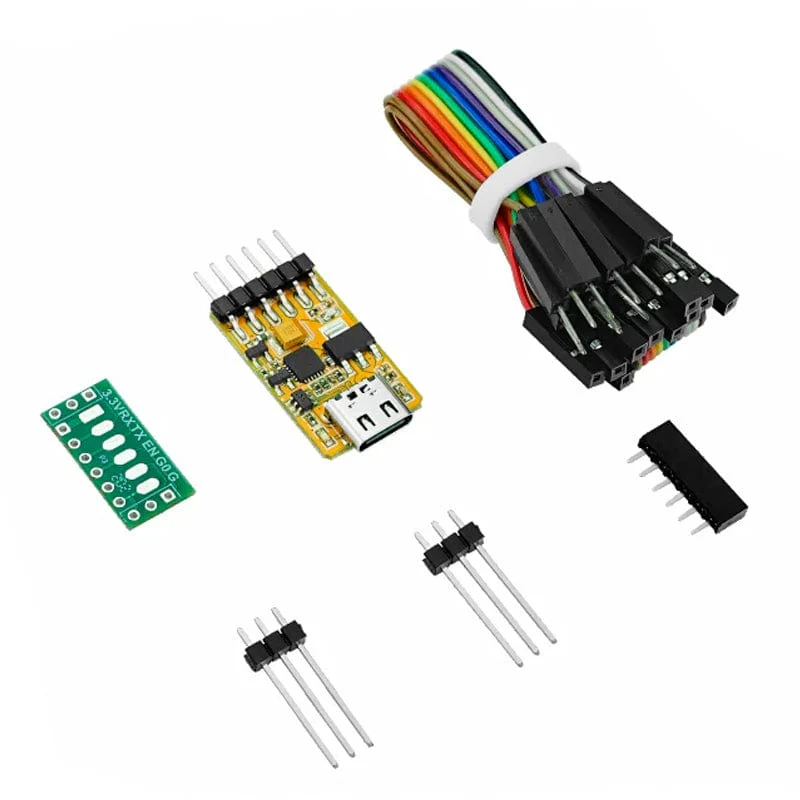

Package Contents

• 1x ESP32 Downloader Kit
• 1x ESP32 CAM Pinout Board
• 1x Jumper Wires
• 1x 2.54 6-pin Female Header
• 2x 2.54 3-pin row of pins
