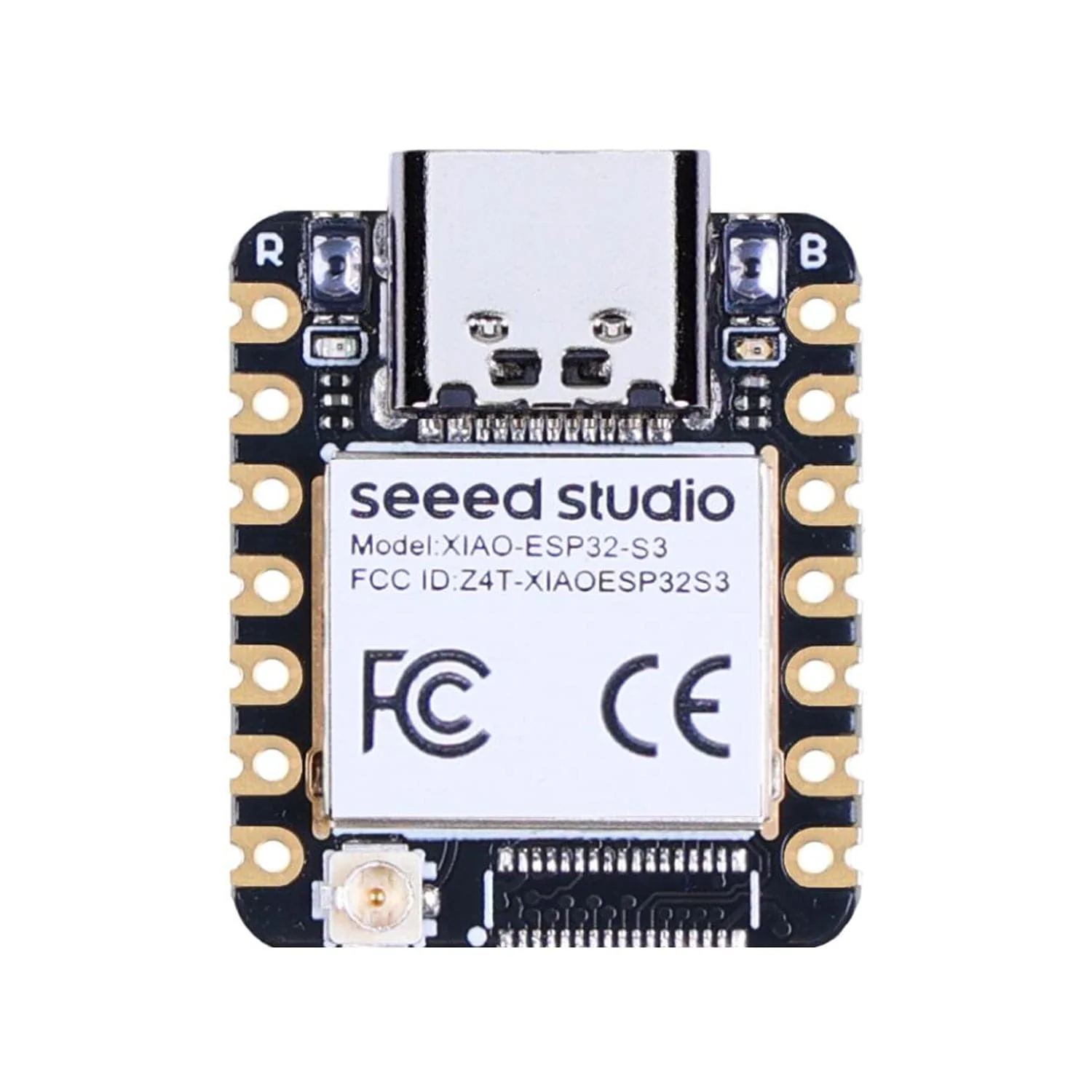

Seeed XIAO ESP32S3

The XIAO ESP32S3 is a high-performance board powered by an Expressif ESP32-S3R8 chip. With support for 2.4GHz WiFi and low-power Bluetooth® BLE 5.0 dual-mode wireless communication, this board is perfect for high-performance, low-power IoT applications.

When connected with the U.FL antenna, the remote communication distance can reach up to 100m.

Equipped with a powerful Xtensa® 32-bit LX7 dual-core processor running at up to 240MHz, 8MB PSRAM, and 8MB Flash, the XIAO ESP32S3 is designed to handle multi-demanding tasks with ease.

Additionally, the XIAO ESP32S3 supports lithium battery charging management and allows for deep sleep mode with power consumption as low as 14μA. With 4 adjustable power modes, the XIAO ESP32S3 can balance communication distance, data rate, and power consumption to meet the needs of various application scenarios.

At just 21 x 17.5mm, the XIAO ESP32S3 is designed with the classic thumb-sized form factor, making it perfect for wearable devices. Its breadboard-friendly and surface-mount design make it ideal for production.

Now available with loose headers or pre-soldered -select an option before adding to your cart.

Features

• Powerful MCU Board: Incorporate the ESP32S3 32-bit, dual-core, Xtensa processor running at up to 240MHz, mounted multiple development ports, Arduino / MicroPython supported
• Outstanding RF performance: Supports 2.4GHz WiFi and BLE 5.0 dual wireless communication, supports 100m+ remote communication when connected with U.FL antenna
• Elaborate Power Design: Lithium battery charge management capability, offer 4 power consumption model which allows for deep sleep mode with power consumption as low as 14μA
• Thumb-sized Compact Design: 21 x 17.5mm, adopting the classic form factor of XIAO, suitable for space-limited projects like wearable devices

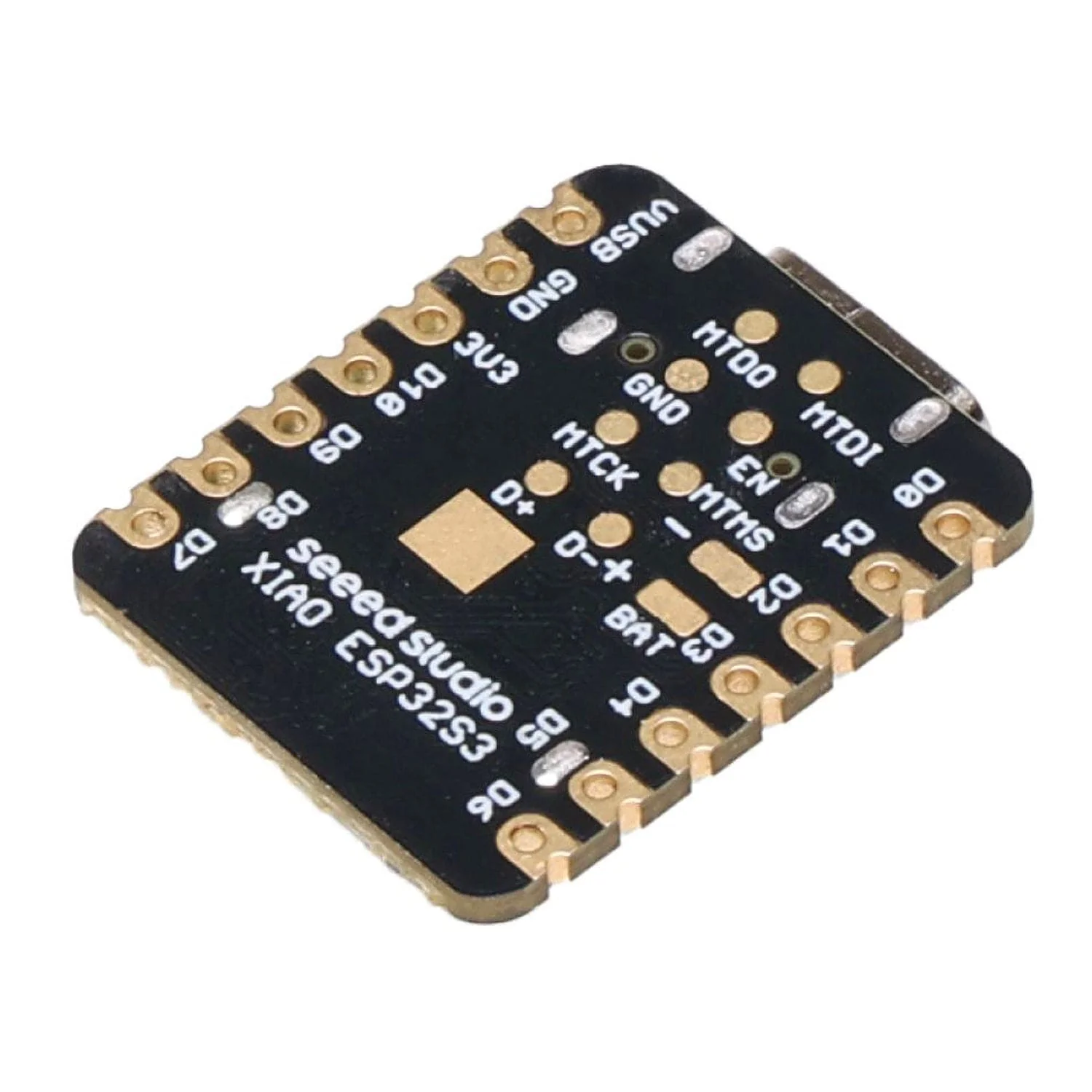

• Perfect for Production: Breadboard-friendly & SMD design, no components on the back
• Product number:
  • Loose headers: Seeed 113991114
  • Pre-soldered: Seeed 102010634

Specifications

Processor	ESP32-S3R8
	Xtensa LX7 dual-core, 32-bit processor running up to 240 MHz
Wireless	Complete 2.4GHz WiFi subsystem
	BLE: Bluetooth 5.0, Bluetooth mesh
On-chip Memory	8M PSRAM & 8MB Flash
Interface	1x UART, 1x IIC, 1x IIS, 1x SPI,11x GPIO(PWM), 9x ADC, 1x User LED, 1x Charge LED
	1x Reset button, 1x Boot button

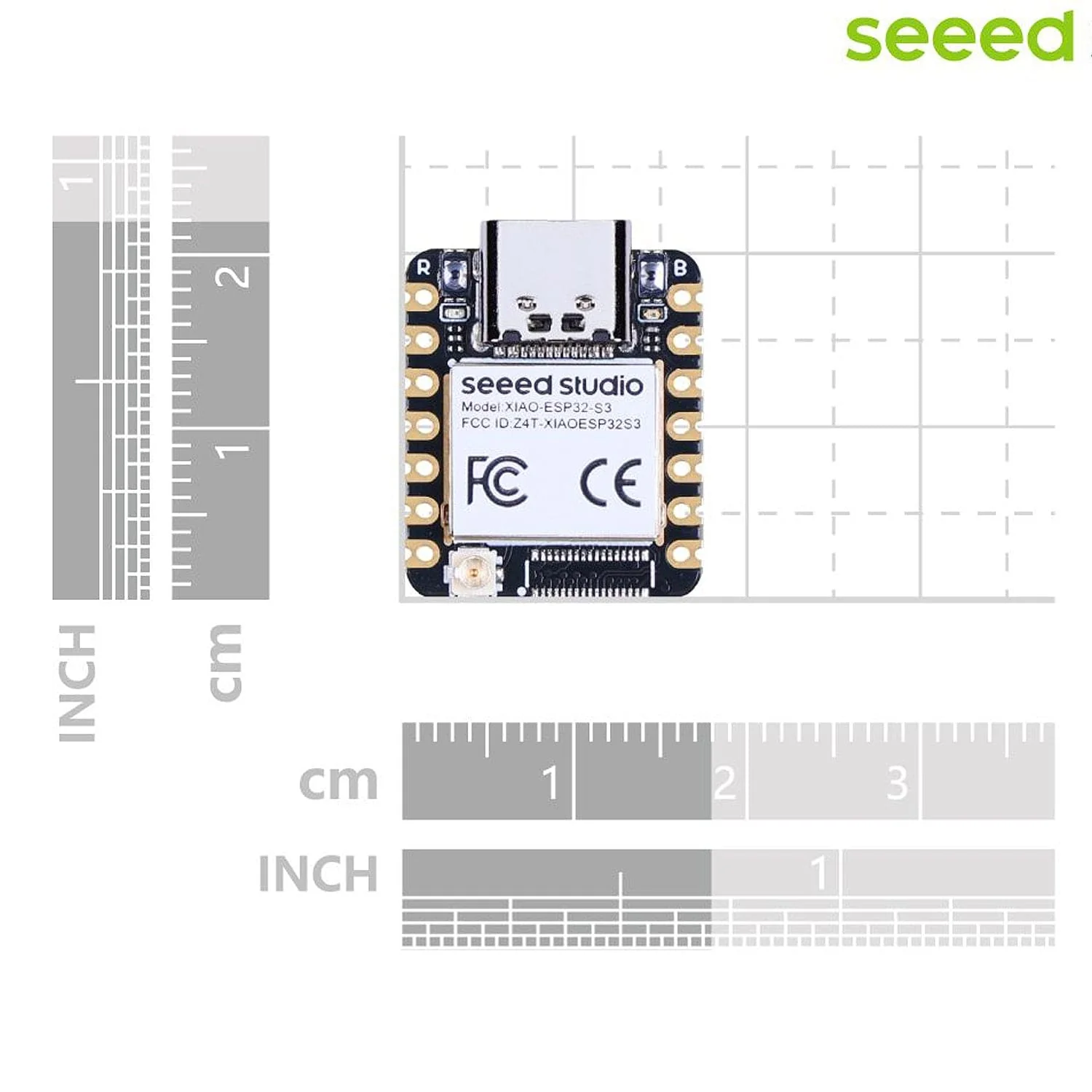

Dimensions	21 x 17.5mm
Power	Input voltage (Type-C): 5V
	Input voltage (BAT): 4.2V
	Circuit operating Voltage (ready to operate):
	- Type-C: 5V@19mA
	- BAT: 3.8V@22mA
	Charging battery current: 50mA
Low Power Consumption Model	Modem-sleep Model: ~ 25 mA
(Supply Power: 3.8V)	Light-sleep Model: ~ 2mA
	Deep Sleep Model: ~ 14 μA
WiFi Enabled Power Consumption	Active Model: ~ 100 mA
BLE Enabled Power Consumption	Active Model: ~ 85 mA
Working Temperature	-40°C ~ 65°C

Resources

• Product Wiki
• ESP32-S3 Datasheet

Pinout

Package Contents

• 1x XIAO ESP32S3 (select header variant before adding to cart)

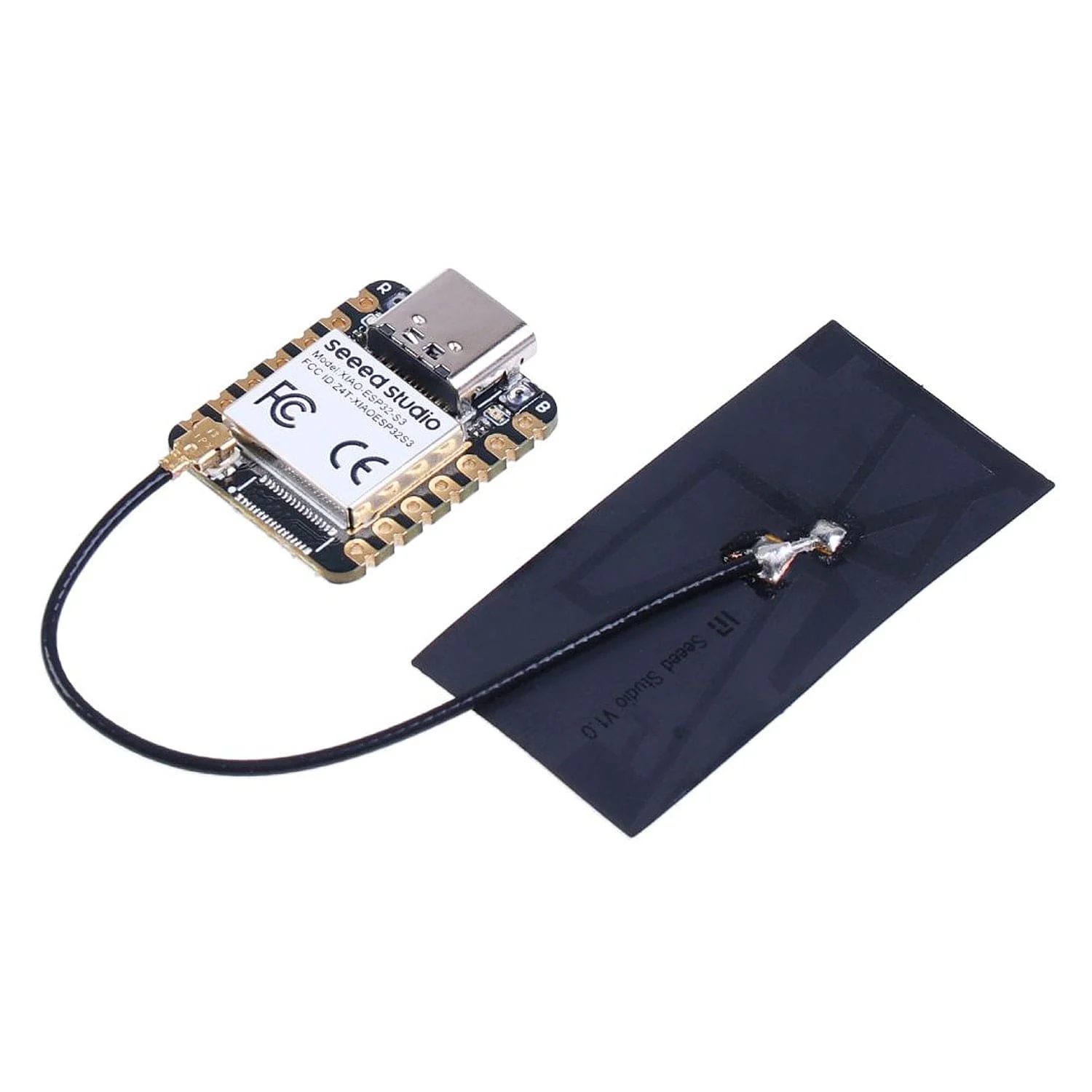

• 1x Antenna

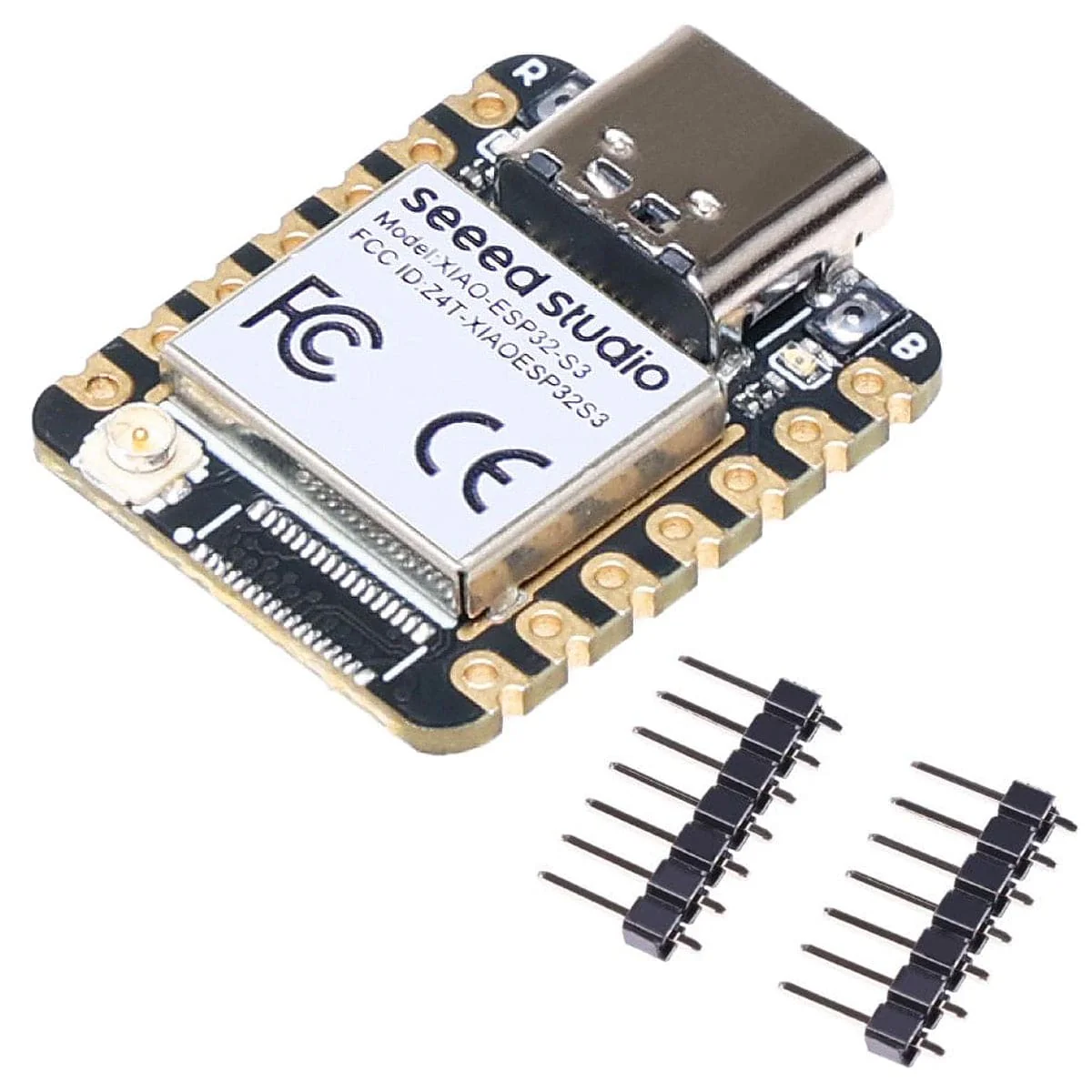

• 1x Loose Header Set (unsoldered version only)
