Olimex DuinoMite-Mini Maximite-Compatible Basic Computer

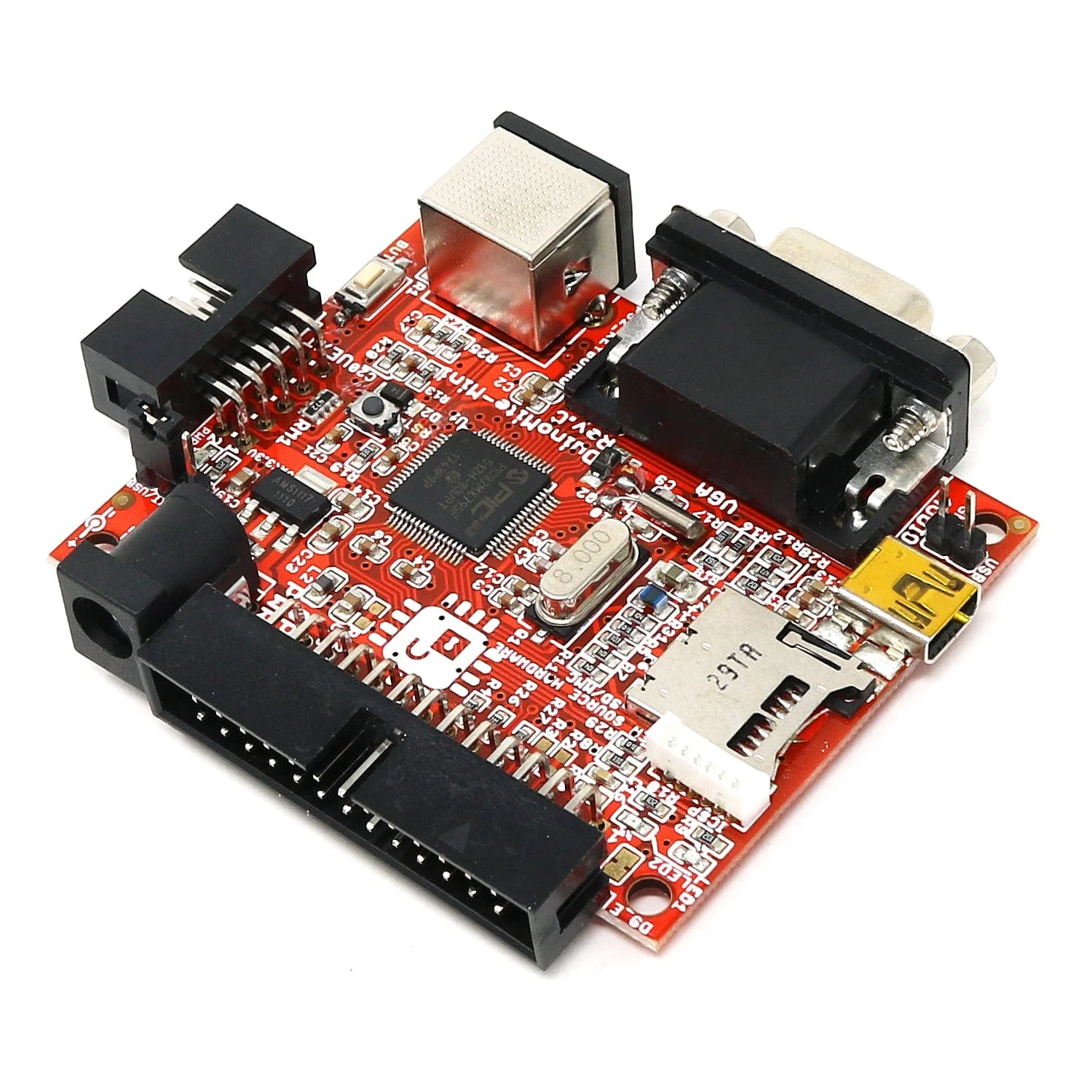

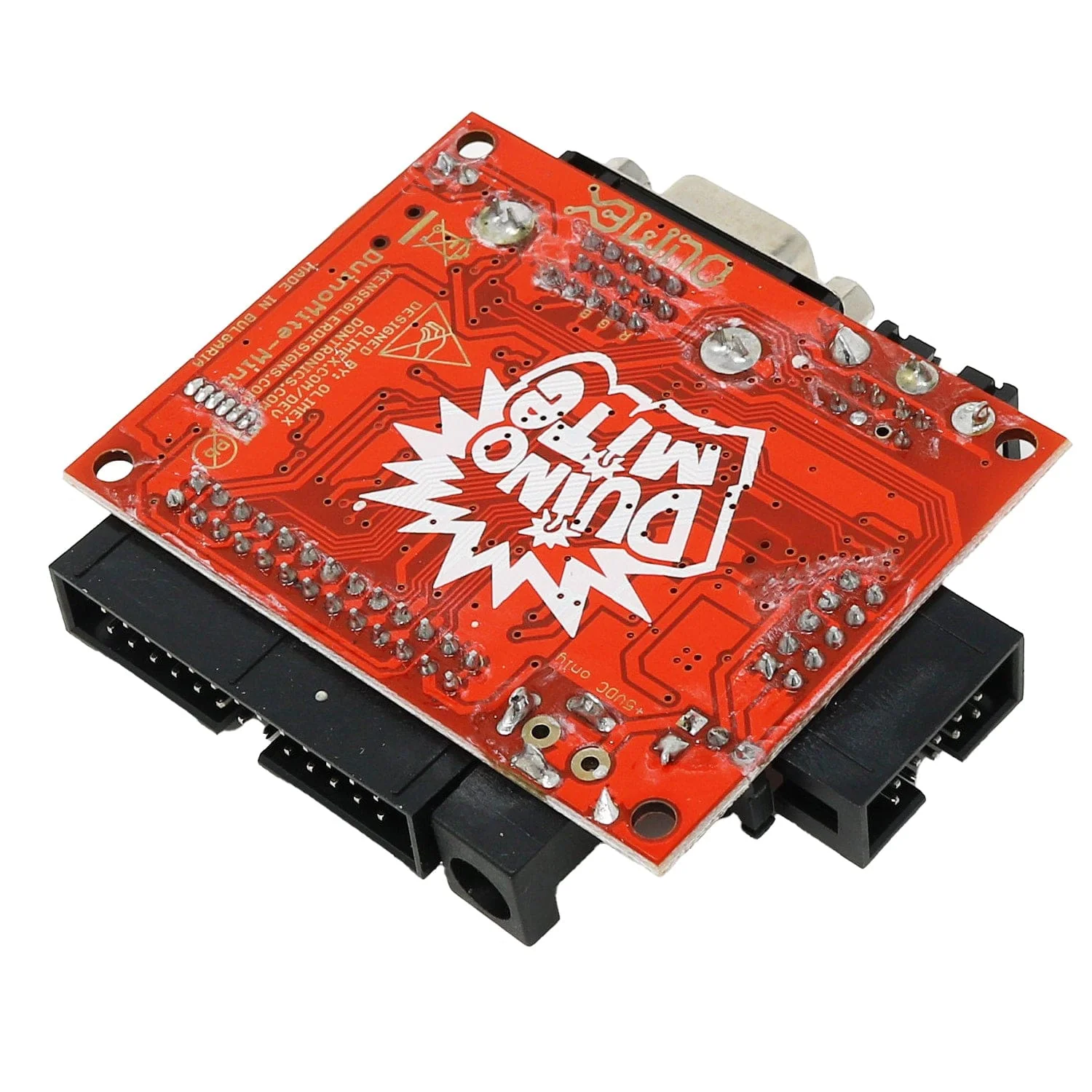

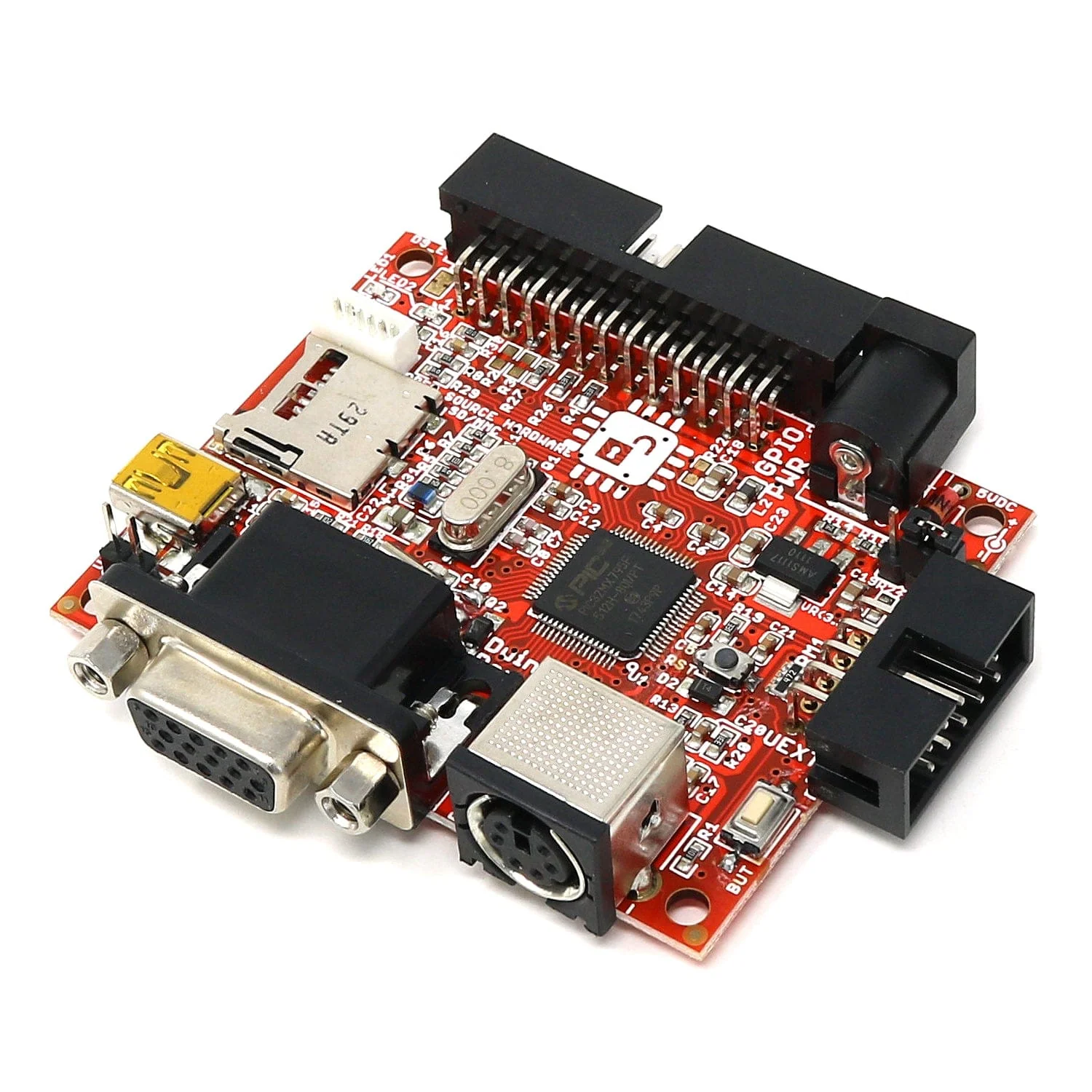

The Olimex DuinoMite-Mini is a Maximite-compatible Basic computer, originally designed by Geoff Graham, with additional features.

The DuinoMite allows you to program in BASIC language and includes a VGA and PS/2 keyboard interface, so you can develop and write your code in Basic without the need for any other computers.

You can store your code on a Micro-SD card and execute it on power-up through autoexec.bas main code.

Key Features

• PIC32MX795F512H processor running at 80Mhz with 128KB RAM and 512KB Flash
• Linear power regulator, requires EXACTLY 5V to the DC POWER JACK
• USB Device DuinoMite-Mini can take power from Mini-USB also, there is 3-way jumper which selects which source is used the DC POWER JACK or the USB
• Micro-SD card socket
• UEXT connector
• GPIO connector
• PS2 Keyboard connector
• VGA connector
• RESET button
• USER buttons
• Three status LEDs
• Commercial temperature operation -0+70C
• Noise immunity
• ICSP programming connector for programming and debugging
• 32,768 KHz low-frequency crystal allows implementation of RTC and low power modes

Resources

Documents

• DuinoMite Users Manual - Revision 1.03 15-12-2011 with UEXT examples, edited by Mick Gulovsen
• DuinoMite programming example
• The evolution of DuinoMite and the differences between DuinoMite and MaxiMite
• Quick reference manual
• European Declaration of Conformity

Hardware

• DuinoMite-Mini schematic file in PDF format Revision C released under Creative Commons Attribution-Share Alike 3.0 United States License
• Latest CAD files on GitHub released under Creative Commons Attribution-Share Alike 3.0 United States License

Software

• DuinoMite's Latest sources on GitHub
• Bootloader HEX and Firmware HEX on GitHub
• Duinomite drivers for virtual com port console, please read the important note for the use of these.
• Duinomite firmware updater, please read the important note for the use of this file.
• Alternative firmware: MaxiMite

Community

• Forum

Projects

• SPACE INVADERS Game for Duinomite with MOD-WII-UEXT-NUNCHUCK
• PACMAN Game for Duinomite with MOD-WII-UEXT-NUNCHUCK
• HOW TO run PACMAN with Duinomite boards - Step-by-step Guide
• TRS-80 emulator by Ken Segler
• Retro BSD by Sergey Vakulenko
• Space Invaders Game by Ken Segler
• Z80 Emulator runs CP-M now and the complete project is on Github by Ken Segler
• Snake retro game written in BASIC by Olimex
• Duinomite with Gameduino shield example by Ken Segler
• Measuring temperature with LM335Z by Olimex
• How Fast is Duinomite Basic? by Olimex
• Measuring temperature with KTY81.110 by Olimex

Warning

Do not use the "programmer-to-go" button when there is no image on the OLIMEX PIC-KIT3 or MICROCHIP PIC-KIT3 because that might put your microcontroller in an irrecoverable state. We have tested the mentioned scenario and we can confirm it destroys PIC32 chips (using both our and the original Microchip PICKIT3). We cannot take responsibility if you break your chip this way. For more info check the following: www.microchip.com/forums/m635420.aspx.

Package Contents

• 1x DuinoMite-Mini board
